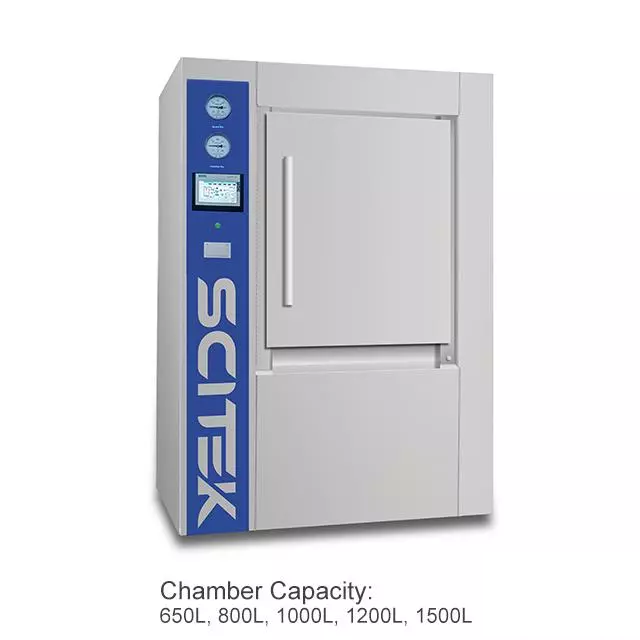

Scitek ST-BA1000PV Horizontal Pulse Vacuum Sterilizer with Motor Hinge Door (1000L)

"Chamber Size (ØxL) mm: 610×910×1800

Volume(L): 1000

Overall Sizes (WxDxH)(mm): 2100×1350×1900

Weight (kg): 1550

Steam Consumption (KG/C): 55

Water Consumption (KG): 500

Power: 380V, 50Hz 3.5KW+(54KW)

N.W. (kg): 1550

Chamber Design Pressure: 0.3MPa

Generator Design Pressure: 1.0MPa

Design Temperaure: 150℃

Maximum Operating Temperature: 139℃

Maximum Operating Pressure: 0.25MPa

Chamber Relief Valve: 0.28MPa

Jacket Relief Valve: 0.28MPa

Accuracy of Pressure: 0.1KPa

Sterilization Temperature Control Accuracy: ±1℃

Temperature Uniformity: ±1℃

Negative Pressure Pulsating Vacuum: -80~0KPa

Across the Pressure Pulsation: -80~80KPa

Positive Pressure Pulse: 0~9 times

Maximum Vacuum: -96KPa"
