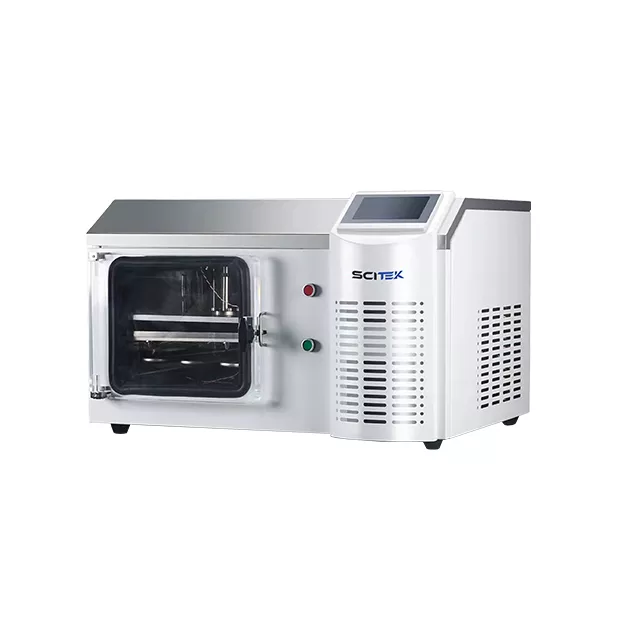

Scitek FD-P2F Pilot Freeze Dryer, -60℃ Cold Trap Temp.

"Freeze-drying Area(m2):0.12

Cold Trap Water Capture Capacity(kg):2

Tray Size(mm):300x400

Tray Quantity:1

Minimum Cold Trap Temperature(℃):-60℃

Shelf Temperature(℃):-50℃~+60℃

Vacuum Degree(Pa):≤5 (Optional vacuum pump can achieve ≤1)

Number of Penicillin Bottles That Can be Placed (For Reference Only):

16mm/2ml:700

22mm/5ml:300

22mm/7ml:920

Vacuum Pump:Standard

Capping Method:Automatic capping (optional)

Power Supply:AC220V, 50/60Hz

Consumption(W):1300

G.W. (kg)(Including Vacuum Pump):110"

"Features:

FD-P2F pilot freeze dryer is a model launched by Scitek for freeze-drying of disc-shaped materials. It can be used for freeze-drying of liquid or solid samples.

All operating processes can be carried out in the warehouse. According to the set temperature, time and vacuum pressure, the samples are pre-frozen in situ. Each layer is equipped with a product temperature probe.

The transparent plexiglass cold trap door allows you to observe the ice formation in the cold trap. You can choose hot air defrost (quick). The shelf temperature is -50°C to +60°C. The effective shelf area is from 0.1-0.48㎡.

Microprocessor control and touch screen cloud configuration function, which can be used for remote control and remote data via mobile phones and computers.

Compressor imported from France

Collect acrylic doors to observe the freeze-drying conditions of materials

With vacuum control function

Supports slope heating and cooling, that is, setting the speed of heating or cooling"
