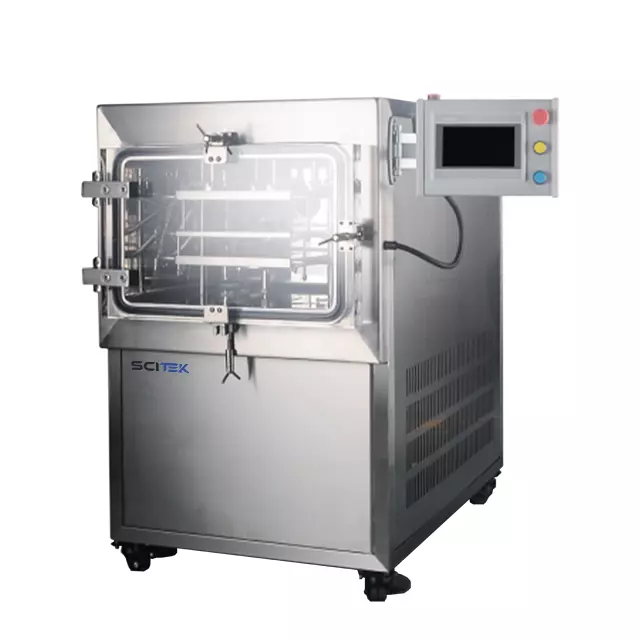

Scitek FD-P10F Pilot Freeze Dryer, -80℃ Cold Trap Temp. (1m2, 6000W)

"Freeze-drying Area(m2): 1

Cold Trap Water Capture Capacity(kg): 15

Tray Size(mm): 600x450

Tray Quantity: 4+1

Minimum Cold Trap Temperature(℃): -80℃

Shelf Temperature(℃): -50℃~+60℃

Vacuum Degree(Pa): ＜5

Number of Penicillin Bottles That Can be Placed (For Reference Only):

16mm/2ml: 7920

22mm/5ml: 4092

22mm/7ml: 4000

Vacuum Pump: Standard

Capping Method: Automatic capping (optional)

Power Supply: AC380V, 50/60Hz

Consumption(W): 6000

G.W. (kg)(Including Vacuum Pump): 1000"

"Pilot Freeze Dryer Features:

The pilot freeze dryer FD-PF series is a versatile, high-performance pilot-scale equipment, equipped with stainless steel shelves and internal heat exchange medium channels for heating and cooling, enabling it to meet the strict requirements of the pharmaceutical and biotechnology industries. Applications include drying of bacteria or cultures, viruses, plasma, serum components, antibodies, vaccines, drugs such as chloramphenicol or streptomycin, vitamins, biomass, and plant extracts for biochemical testing.

Acrylic material drying chamber transparent door

Plate layer pre-freezing function

Internationally renowned compressor

Standard oil mist filter

Storage after charging with hydrogen or inert gas for dry blasting

Utilizing industrial touch screen

Plate heating control system, freeze-drying automatic control system, vacuum regulation system, Pulse reinfusion system, automatic drainage system, data recording system, monitoring system, PC remote monitoring system, calibration function, freeze-drying curve query function

Optional: Automatic capping device, eutectic point testing function"
