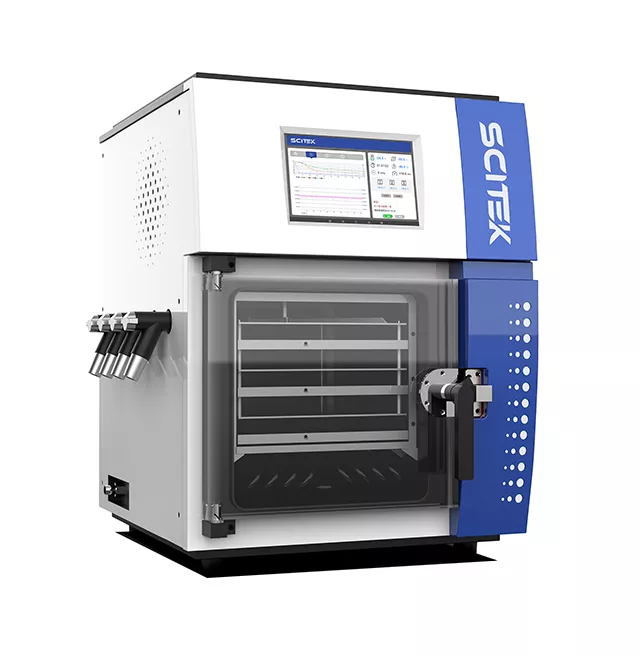

Scitek FD-B4 Box Freeze Dryer, Automatic Capping

"Maximum Freeze-drying Area (m2):0.36

Cold Trap Water Capture Capacity (kg):6kg

Tray Size (mm):320x400

Tray Quantity:3

Tray Spacing:60mm

Tray Temperature Range:-40~70℃ (No load, ambient temperature ≤ 23 ℃)

Vacuum PumpStandard: (An organic solvent resistant vacuum pump is optional.)

Vacuum Pump Pumping Speed:2L/s

Capping Method:Automatic capping

Freeze Drying Bottles:4x50ml, 4x100ml, 4x250ml, 4x500ml (optional)

Power Supply:AC220V, 50/60Hz

Consumption(W):2800W

Freeze Drying Chamber (W×D×H)(mm):450x359x364

Main Machine/Vacuum Pump:G.W. (kg):270/17"

"Features:

316L stainless steel square freeze dryer, with organic glass material for the door

Shelf temperature control system

Real-time display of vacuum degree, cold trap temperature, sample temperature, partition temperature, and running error alarm

Freeze-drying curve optimization control technology

10-inch color LCD touch screen

Exclusive JD lyophilization operating system. Switchable between Chinese and English, simple and user-friendly. Can edit and save over 1000 process formulas, each containing 50 temperature control segments. Experiment can be paused midway to modify parameters

Automatic preservation of freeze-dried data

Automatic One-Button Defrosting for Cold Traps

Intelligent vacuum adjustment (optional)

Hydraulic system to meet the vacuum packaging requirements after sample freeze-drying (optional)

Internet of Things (IoT) remote control system (optional)"
