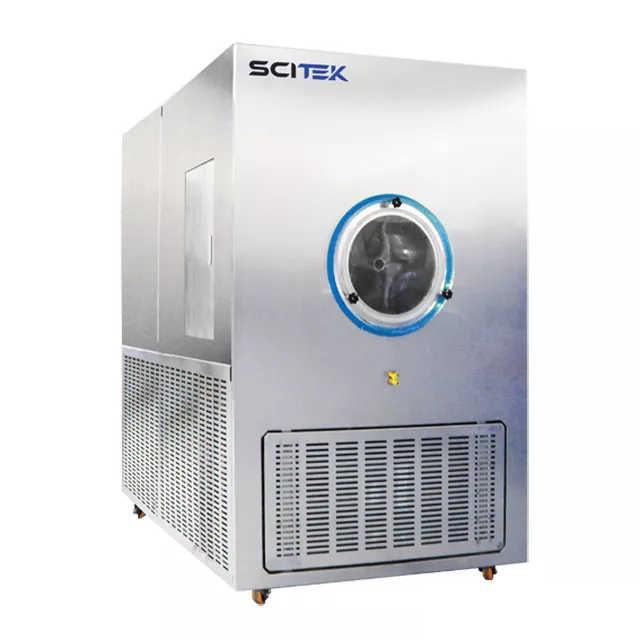

Scitek FD-200S Pilot Freeze Dryer, -80℃ Condenser Temp

"Type:Standard

Freeze Drying Area (m2):2

Shelf Temperature (℃):-50~+70

Condenser Temperature (no-loading) (℃):≤-80

Vacuum Degree (no-loading) (Pa)L≤5

Condenser Capacity (L):90

Ice ondenser Capacity (kg/24h):40

Tray(Qty):6+1

Tray Size (LxWxD)(mm):500x700x13

Height Between Trays (mm):90

Total Loading Capacity (L):40

Temperature Uniformity(Tray) (℃):±1

Refrigerant:CFC-free

Electric Defrosting:Y

Stoppering Mode:/

Total Qty. Of Vial Φ22:4100

Total Qty. Of Vial Φ16:7800

Total Qty. Of Vial Φ12:14400

Consumption (kW):15

Electricity:AC380V/50Hz (standard), other electricity type can be customized

External Size (WxDxH)(mm):1260x3710x2076

Shipping Size (WxDxH)(mm):

+Main Body:1600x2050x2400

+Vacuum Pump:1010x340x510

Gross Weight (kg):Around2500"
