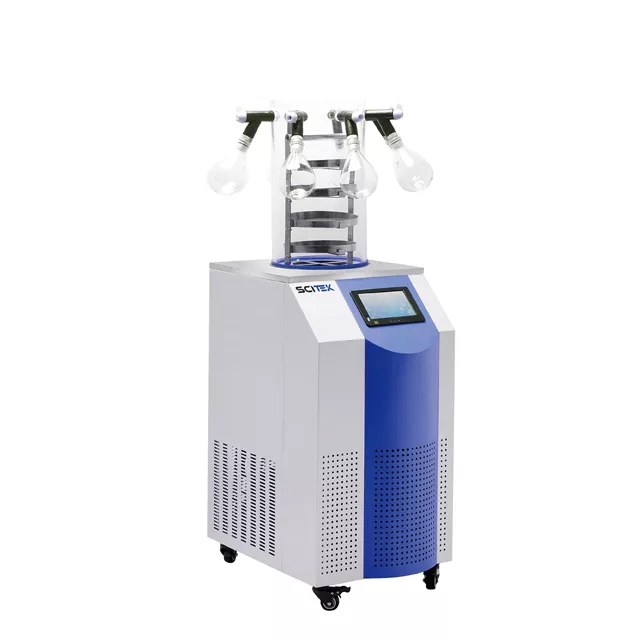

Scitek FD-12P Vertical Freeze Dryer -60/-80℃ Condenser Temp

"Type: Stoppering chamber with 8 port manifold

Freeze Drying Area (m2) : 0.09

Tray (Qty): 3pcs

Tray Size (ΦxH)(mm): Φ200x20

Height Between Trays (mm) : 70(average)

Condenser Temperature (℃) : -60/-80

Condenser Capacity (L) : 9.5

Condenser Size (DiameterxH)(mm) : Φ217x250

Vacuum Degree (No-loading) (Pa) : ≤5

Ice Condensing Capacity (kg/24h) : 4

Loading Capacity/ Shelf (mL) : 300

Total Loading Capacity (mL): 900

Drying Chamber Size (Standard): Lower circle: Φ260mm; Upper circle: Φ240mm; Height: Φ450mm

Total Qty. of Vial Φ22: 195

Total Qty. of Vial Φ16: 360

Total Qty. of Vial Φ12 : 690

Refrigerant Type : CFC-free

Standard Accessories:

Vacuum pump 2L/s, 8m³/h, material tray, material rack, PC cover (for all modes), Conical-mouth flask 500mLx8 pcs, switch valvex8 pcs

Consumption: 0.95kW(-60℃)/1.5kW(-80℃)

Electricity: AC220V,50Hz(standard), other electricity type can be customized

External Size (WxDxH)(mm): 480x610x905/1415

Shipping Size (WxDxH) :

+Main Body : 730x600x1180mm

+Drying Chamber : 410x410x640mm

+Vacuum Pump: 220x580x370mm

Gross Weight: 135kg(-60℃)/155kg(-80℃)"
