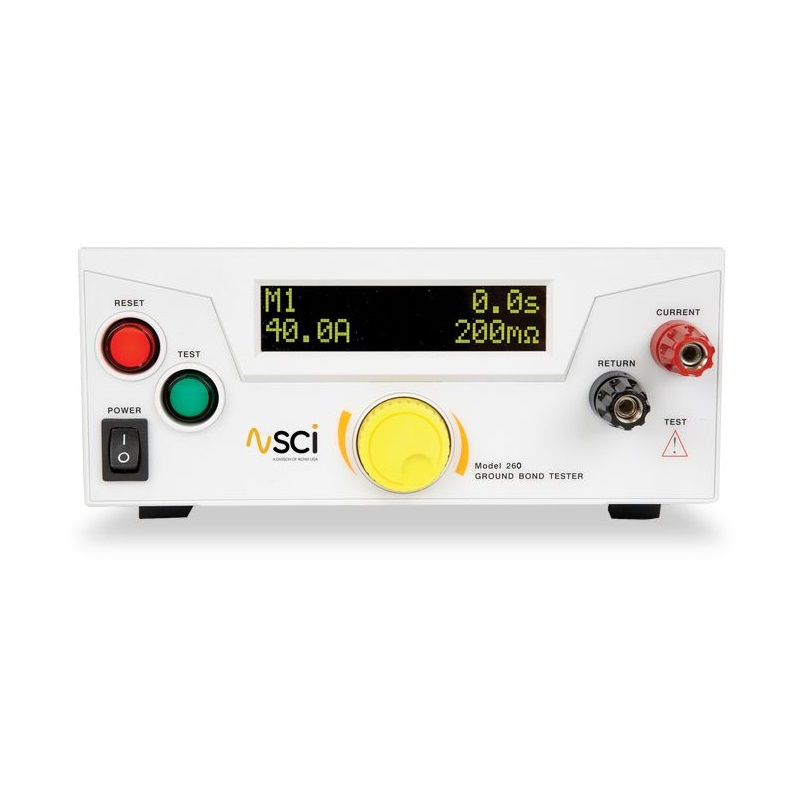

SCI 264 AC Ground Bond Tester (3-40A AC, 5 years warranty)

INPUT

- Voltage: 100 - 120 VAC / 200 - 240 VAC ± 10% Auto Range

- Frequency: 50/60 Hz ± 5%

- Fuse: 10A / 250 VAC Slow-Blow

GROUND BOND TEST MODE

- Output rating: 3.0 - 40.0 AAC

- Voltage setting: 0-5.00 kVAC; 0-6.00 kVDC

+ Resolution: 0.1A

+Accuracy: ± (2% of setting + 0.1A)

+ Voltage 8 VAC (fixed)

- Output Frequency: 50/60 Hz user selectable

+ Accuracy: ± 0.1%

- Resistance limit settings: 0 - 150 mΩ for 30.1 - 40.0 A

0 - 200 mΩ for 10.1 - 30.0 A

0 - 600 mΩ for 3.0 - 10.0 A

+Resolution: 1 mΩ

+Accuracy: ± (2% of setting + 2 mΩ)

- Offset limit settings: 0 - 100 mΩ

+Resolution: 1 mΩ

+Accuracy: ± (2% of setting + 2 mΩ)

- Dwell timer: 0, 0.5 - 240.0 sec, (0=continuous), 0.1 sec/step

- Ramp timer: 0.1 sec fixed

- Measurement current: 0.0 - 40.0 AAC

+Resolution: 0.1 A

+Accuracy: ± (3% of reading + 0.1 A)

- Ohmmeter: 0 - 600 mΩ

+Resolution: 1 mΩ

+Accuracy: ± (3% of reading + 3 mΩ) for 3 - 5.9 A,

± (2% of reading + 2 counts) for 6 - 40A

GENERAL SPECIFICATIONS

- Memories: 5

- Remote I/O:

+Input: Test, Reset, Interlock

+Output: Pass, Fail, Test-in-Process

- Voltage limit settings: 0.00 - 6.00 VAC

+Resolution: 0.01 V

+Accuracy: ± (2% of setting + 0.02 V)

- Offset limit settings: 0.00 - 4.00 VAC

+Resolution: 0.01 V

+Accuracy: ± (2% of setting + 0.02 V)

- Safety mark: CE/cTUVus

- Dimensions (WxHxD): 8.5" x 3.5" x 11.81" (215 x 88 x 300 mm)

- Weight: 9.25 lbs. (4.3 Kg)
