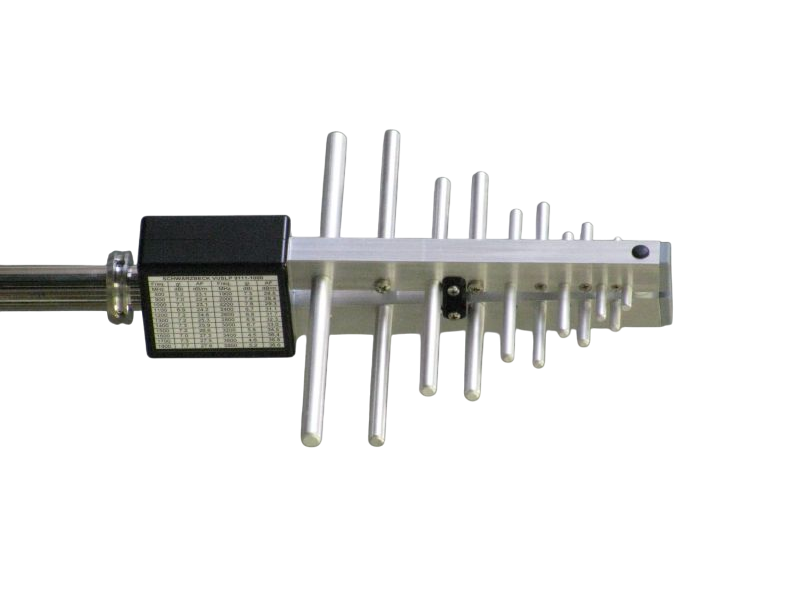

Schwarzbeck VUSLP 9111-1000 Log Periodic Antenna (800 MHz ~ 3 GHz)

Nominal Frequency Range:800 MHz...3 GHz

Usable Frequency Range:750 MHz ... 4 GHz

Isotropic Gain: typ.7 dBi +/- 1 dB

Antenna Facto : 22 ... 34 dB/m

Nominal Impedance: 50 Ω

Standing Wave Ratio SWR max.: < 2.8 (f < 2.3 GHz)

Standing Wave Ratio SWR typical: < 1.5 (f < 2.3 GHz)

Front to Back Ratio: typ. 20 dB +/- 5 dB

Cross Polarisation: >20 dB (800 MHz...1.3 GHz)

3 dB Beamwidth typ. (E-Plane): 40°-65°

3 dB Beamwidth typ. (H-Plane): 90°-110°

Max. Input Power: 300 W (1 GHz)

N-Connector female

Mount: 22 mm Tube, Indexing Ring

Width × Length × Thickness: 220 × 460 × 65 mm

Weight: 0.9 kg
