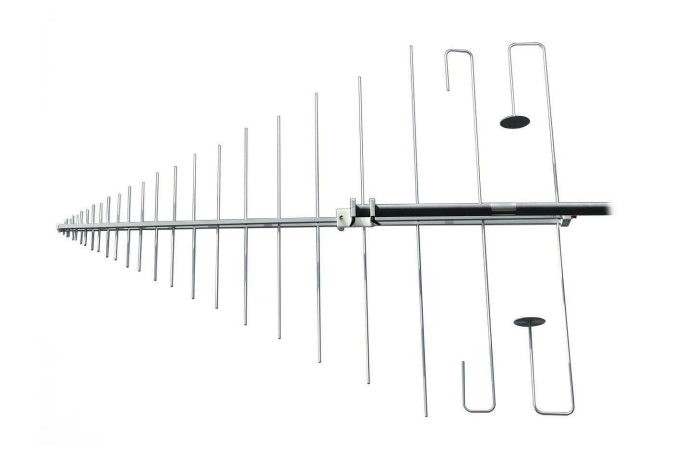

Schwarzbeck VULP 9118 D special Log Periodic Antenna (90 - 1500 MHz)
ManufacturerSchwarzbeck(View more products from this manufacturer)
ModelVULP 9118 D special
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Nominal Frequency Range: 90 ... 1500 MHz
Usable Frequency Range: 80 ... 1800 MHz
Gain: typ. 6.5 dBi
Antenna Factor: 4 ... 27 dB/m
Cross Polar Rejection: > 20 dB (f < 1 GHz)
Input Power: 1 kW max.
Element Length LE max.: 1400 mm
Number of Elements: 21
Total Length LT: 1590 mm
Structure Length LS: 1460 mm
Material: Aluminium
Weight: 3.2 kg
Mounting: 3/8", M12
Recommended Accessories:
Mast, Tripod: AM 9144
Swivel Adapter: KG 9201
Field Strength Monitoring: VUFM 1670
Display Unit: VUFM 1671
