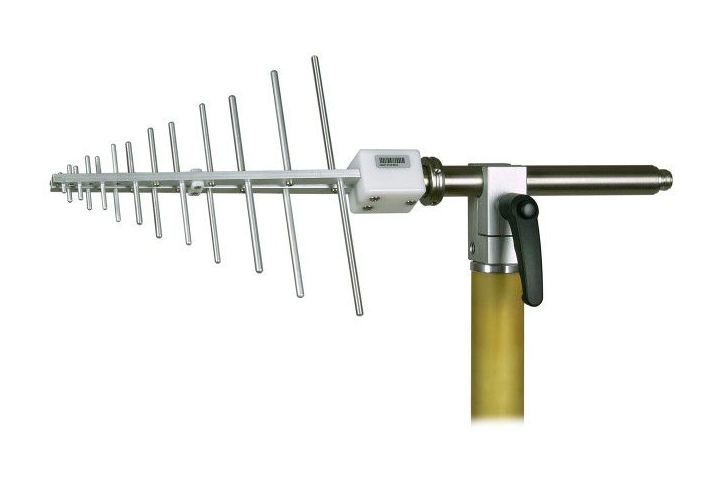

Schwarzbeck USLP 9142 Log Periodic Antenna (800 MHz ~ 5 GHz)

Nominal Frequency Range: 800 MHz ... 5 GHz

Usable Frequency Range: 650 MHz ... 8 GHz

Nominal Impedance: 50 Ω

Standing Wave Ratio (SWR) typical: <1.5

Isotropic Gain: 4 ... 7 dBi

Antenna Factor: 23 ... 38 dB/m

Front to Back Ratio: 20 dB

Cross Polarisation:>20 dB (800 MHz ... 2 GHz)

3 dB Beamwidth typ. (E-Plane): 50°-75°

3 dB Beamwidth typ. (H-Plane): 90°-120°

Max. Input Power: 300 W @ 1 GHz / 150 W @ 5 GHz

Connector: N-Connector female

Mount: 22 mm Tube, Indexing Ring

Width × Length × Thickness: 200×455(200)×40 mm

Weight: 0.55 kg
