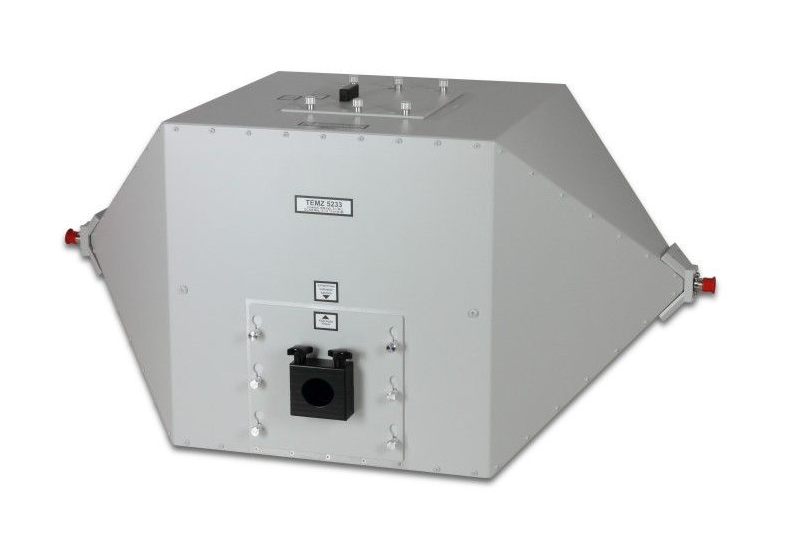

Schwarzbeck TEMZ 5233 Stripline (DC – 420 MHz)

Nominal Frequency Range (TEM-Mode): DC – 420 MHz

Usable Frequency Range (TEM and higher modes): DC – 600 MHz

Septum Height: 200 mm

Aperture: 150 × 160 mm

Nominal Impedance: 50 Ω

Standing Wave Ratio SWR typical: < 1.05

Standing Wave Ratio SWR max.: < 1.2

Voltage / Fieldstrength relation: 1 V = 5 V/m

Conversion Ratio Voltage → Fieldstrength: +14 dB/m

Max. Input Power (with suitable termination): 1000 W (f < 300 MHz)

Maximum fieldstrength: 1100 V/m

Transmission S21: < 0.1 dB

N-Connectors female

Width × Length × Thickness: 420 × 850 × 430 mm

Weight: 6.3 kg
