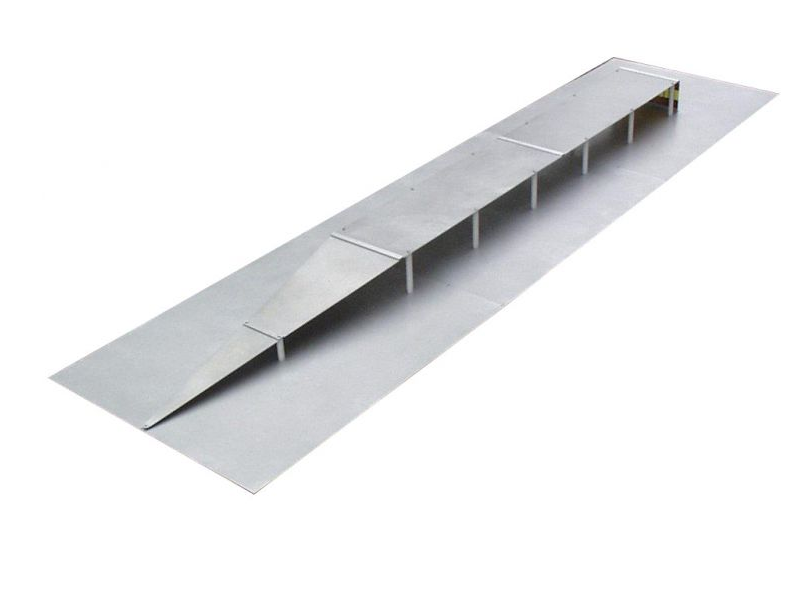

Schwarzbeck TEMZ 5232 Stripline (DC – 220 MHz)

Material: Aluminium

Nominal frequency range (TEM mode): DC – 220 MHz

Usable frequency range (TEM and higher modes): DC – 1000 MHz

Nominal impedance: 90 Ω

Standing wave ratio (SWR) typical: 1.8 (f < 220 MHz)

Standing wave ratio (SWR) max.: < 2.2 (f < 220 MHz)

Voltage / field strength relation: 1 V = 6.67 V/m

Max. input power (with built-in termination): 60 W

Maximum field strength: 500 V/m

Field strength ripple: < ±2 dB

Connector: N-type female

Monitor output: BNC female

Stripline inner dimensions: 300 × 150 × 2000 mm

Width × Length × Thickness: 900 × 3500 × 200 mm
