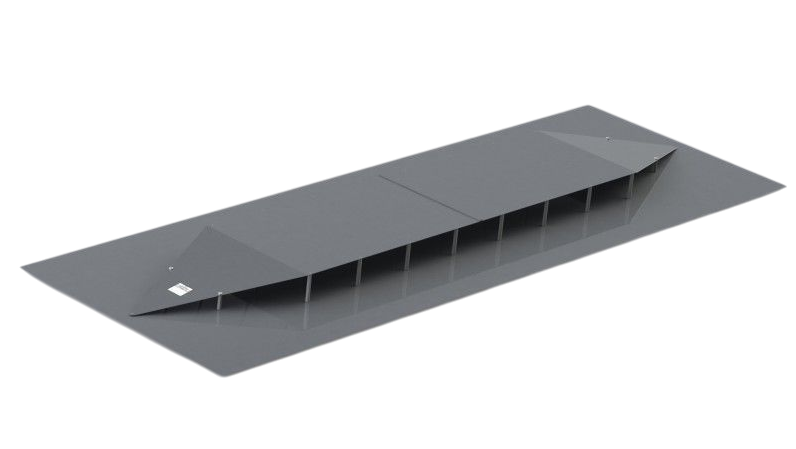

Schwarzbeck TEMZ 5231 Stripline (DC – 220 MHz)

Material: Aluminium

Nominal frequency range (TEM mode): DC – 220 MHz

Usable frequency range (TEM and higher modes): DC – 1000 MHz

Nominal impedance: 50 Ω

Standing wave ratio SWR typical: < 1.5 (f < 220 MHz), < 2 (f > 220 MHz)

Voltage / field strength relation: 1 V = 6.67 V/m, 1 V/m = 0.15 V (16.5 dB/m)

Max. input power (with suitable high-power termination): 1 kW (intermitt.), 500 W (cont.)

Connector: N-type female

Stripline inner dimensions: 740 × 150 × 2500 mm

Width x Length x Thickness:: 1500 × 4300 × 200 mm

Datasheet
