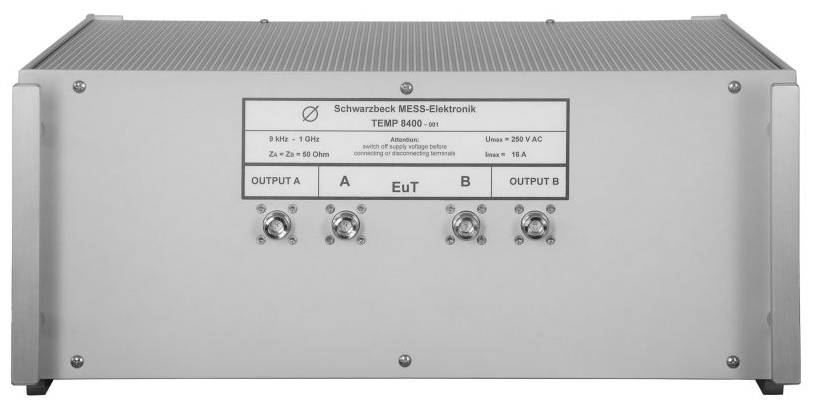

Schwarzbeck TEMP 8400 Tempest LISN (9 kHz – 1 GHz, 16 A)

Frequency Range: 9 kHz – 1 GHz

Max. cont. current: 16 A

Max. current, limited time 3 min: 25 A

Max Voltage (DC to 400 Hz): 250 V AC

Impedance (50 Hz): 1.4 Ω

AMN Impedance A, or B: (50 ± 10) Ω

Insertion loss (EUT – AE): Typ. 25…60 dB

Voltage Division Factor at the measuring port: (0 … –3) dB

EuT Connectors: N-female

Adapters available for:

Wing terminals M7×0.75 not unscrewable

BS1363 (UK Type G)

CEE 7/3 (Schuko)

Dimensions (W × H × D): 448 × 191 × 470 mm

Weight: 11.5 kg
