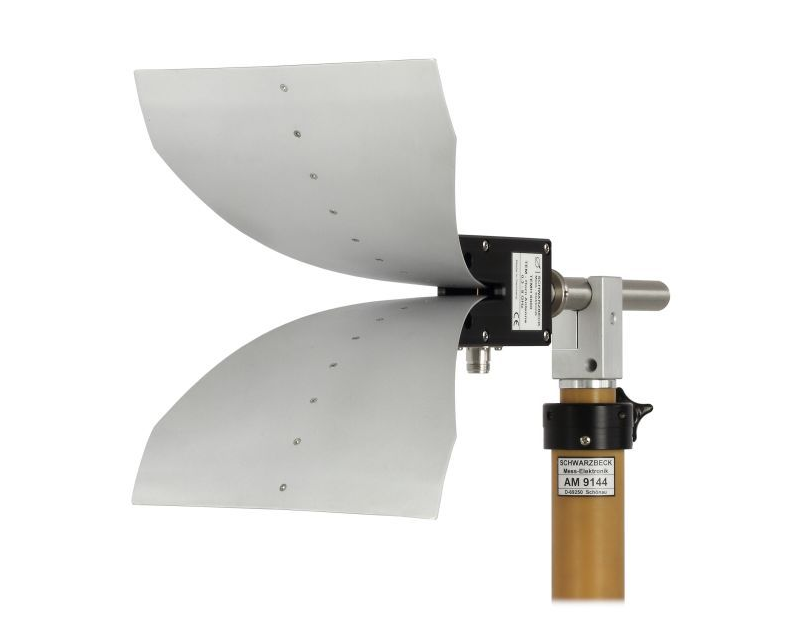

Schwarzbeck TEMH 6000 Broadband TEM Horn Antenna (380 MHz ... 6 GHz)

Nominal Frequency Range: 380 MHz...6 GHz

Usable Frequency Range: 300 MHz ... 8 GHz

Nominal Impedance: 50 Ω

Standing Wave Ratio SWR typical: < 2

Unbalance: < 1.0 dB, typ. < 0.5 dB

Cross Polarisation Rejection: typ. > 20 dB

0…-4 dB Uniform Area Dimension in 10 cm Distance: x ~ 30 cm, y ~ 20 cm

Max. Input Power: 300 W

Isotropic Gain: 2...10 dBi

Antenna Factor: 20...38 dB/m

3 dB Half-Power-Beamwidth E-Plane: typ. 30° … 68°

3 dB Half-Power-Beamwidth H-plane: typ. 40°… 61°

N-Connector female

Mount: 22 mm Tube, Indexing Ring

Width x Length x Height: 260 x 300 (500) x 210 mm

Weight: 1.4 kg
