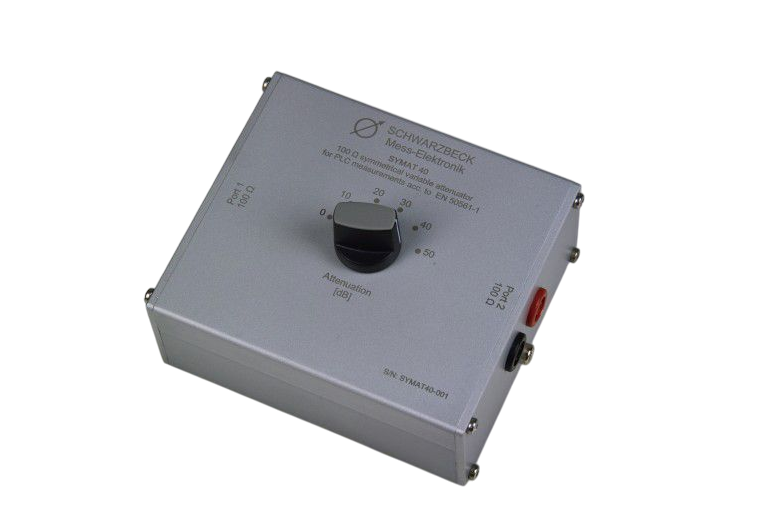

Schwarzbeck SYMAT 40 Symmetrical Attenuator (DC … 30 MHz)
ManufacturerSchwarzbeck(View more products from this manufacturer)
ModelSYMAT 40
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency range: DC … 30 MHz
Usable frequency range (typical): DC … > 50 MHz
Nominal impedance: 100 Ω
Attenuator steps: 0, 10, 20, 30, 40, 50 dB
Frequency response (flatness): < 0.5 dB
Max. input power: 1 W
VSWR: < 1.5 :1 @ 30 MHz
Proof voltage against housing: > 500 V DC
Housing material: Aluminium
Housing dimensions: 125 x 104 x 50 mm
Weight: ~470 g
Connectors: 4 mm safety laboratory jack
Terminal spacing: 19 mm
Ground connectors:Bottom of housing and 4 mm jack
