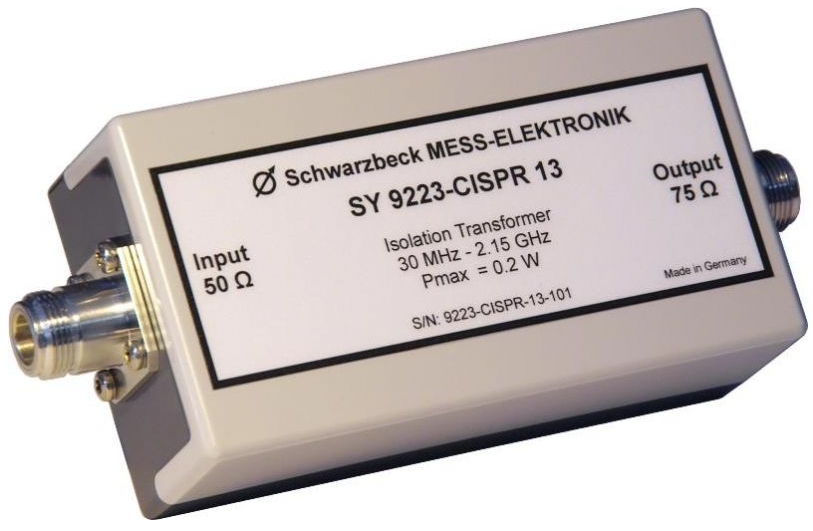

Schwarzbeck SY 9223-CISPR 13 Broadband Isolation Transformer (30 MHz – 2150 MHz)

Nominal Frequency Range: 30 MHz – 2150 MHz

Usable Frequency Range: 2 MHz – 2400 MHz

Power Attenuation: typically 30 dB ±1.5 dB

Maximum Power: 200 mW

Impedance Transformation: 50 Ω : 75 Ω

Dimensions: 160 × 40 × 65 mm

Weight: 204 g

Input Return Loss: minimum 12 dB

Input Connector: N-female, 50 Ω

Output Connector: N-female, 75 Ω
