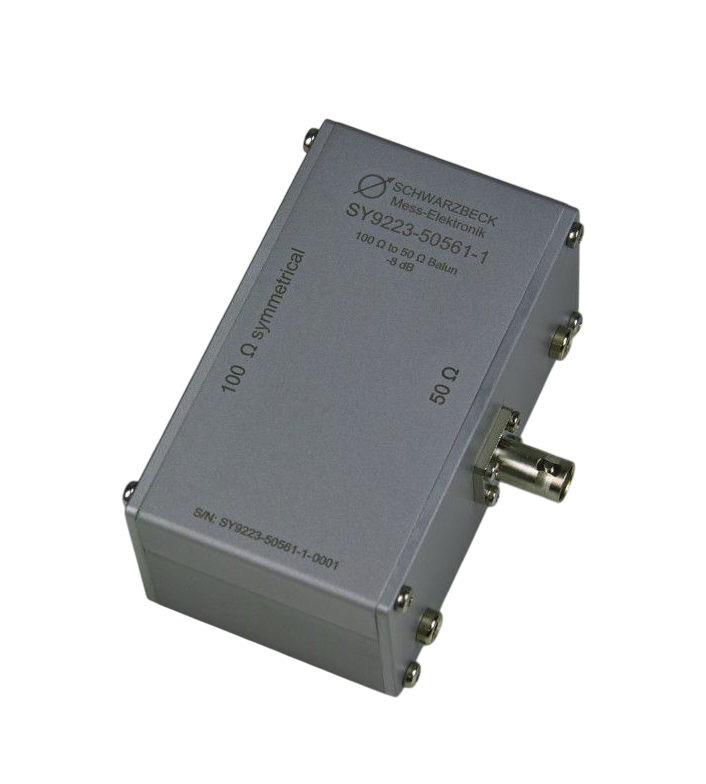

Schwarzbeck SY 9223-50561-1 symmetrical transformer (1.6 MHz … 30 MHz)

Frequency range: 1.6 MHz … 30 MHz

Usable frequency range (typical): < 1.0 MHz … > 50 MHz

Insertion loss: 8 dB ± 0.2 dB

Frequency ripple (flatness): < 0.2 dB

Symmetrical impedance (output): 100 Ω

Unsymmetrical impedance (input): 50 Ω

Max. input power: 200 mW

VSWR: < 1.1 :1 @ 30 MHz

Proof voltage against housing: > 500 V DC

Housing material: Aluminium

Dimensions (L × W × H): 125 mm × 104 mm × 50 mm

Weight: approx. 270 g

Unsymmetrical connector: BNC jack 50 Ω

Symmetrical terminals: 4 mm safety laboratory jack

Terminal spacing (on symmetrical side): 19 mm
