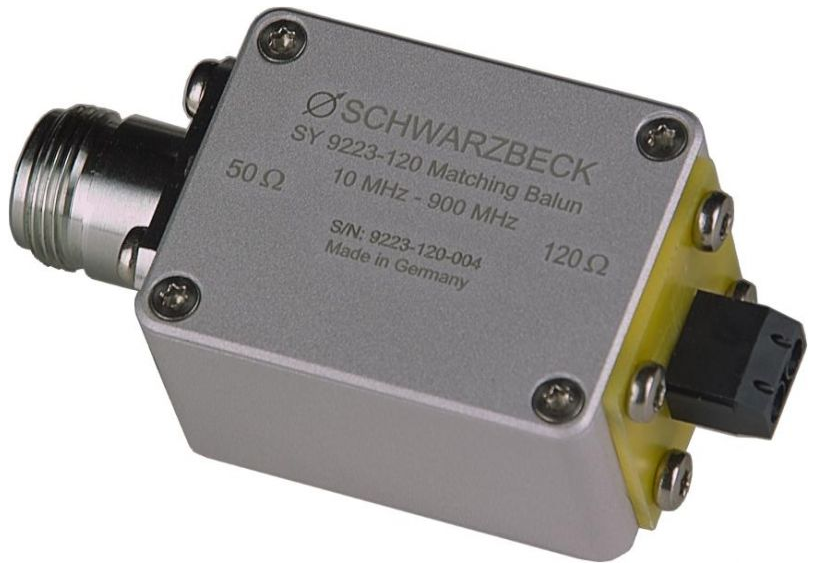

Schwarzbeck SY 9223-120 Broadband balun (30 MHz – 250 MHz)

Nominal Frequency Range: 30 MHz – 250 MHz

Usable Frequency Range: 10 MHz – 900 MHz

Attenuation (50 Ω) per Balun: 9.5 dB ±1.0 dB

Maximum Power: 500 mW

Impedance Transformation: 50 Ω : 120 Ω

Dimensions: 75 × 35 × 26 mm

Weight: 96 g

Input Return Loss: minimum 20 dB

Input Connector: N-female, 50 Ω

Output Connector: Screw terminals, 120 Ω

Housing: Aluminium
