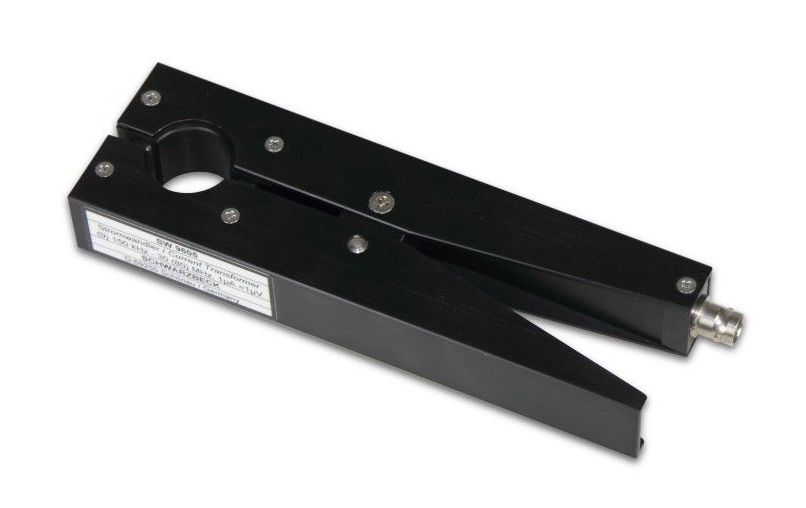

Schwarzbeck SW 9605 Current Transformer Clamp (150 kHz – 30 MHz)

Nominal Insertion Loss in 50 Ω System: 34 dB

Transfer Impedance: 1 Ω

Nominal Frequency Range: 150 kHz – 30 MHz

Usable Frequency Range: 9 kHz – 80 MHz

Conversion (Current → Voltage): 1 µA = 1 µV

VSWR: typically < 1.2

Usable Frequency Range with AC 5 A (50 Hz, –1 dB): 290 kHz – 80 MHz

Usable Frequency Range with AC 10 A (50 Hz, –1 dB): 330 kHz – 80 MHz

Usable Frequency Range with AC 20 A (50 Hz, –1 dB): 520 kHz – 80 MHz

Connector: BNC female

Dimensions: 188 × 53 × 28 mm

Maximum Wire Diameter: 23 mm

Material: Aluminium

Weight: 260 g
