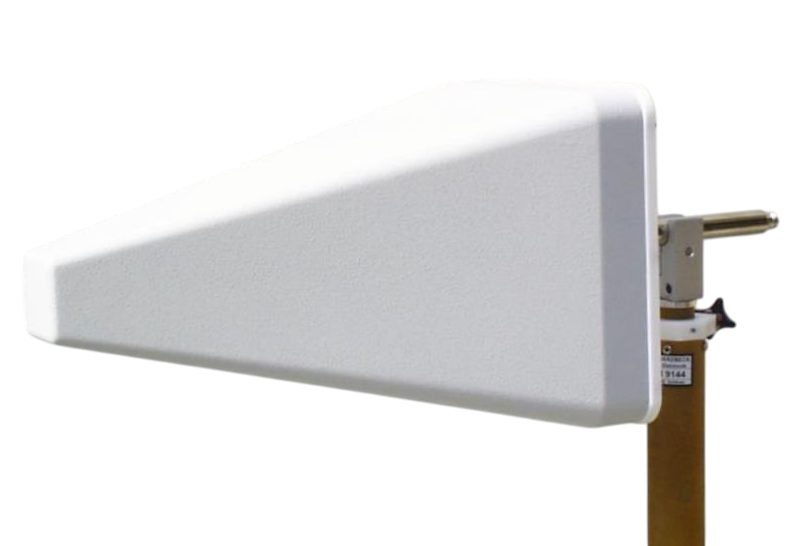

Schwarzbeck STLP 9149 Microwave Log.-Per. Antenna (0.7 – 9 GHz)

Nominal Frequency Range: 0.7 – 9 GHz

Useable Frequency Range: 0.6 – 10.5 GHz

Impedance: 50 Ω

Connector: N-type female

Mounting Tube: ⌀22 mm, Length = 215 mm

Isotropic Gain: typ. 10.3 dBi ±1.5 dB

Antenna Factor: 18…41 dB/m

SWR (typical): < 1.5 (for f < 7 GHz)

Max. Input Power: 300 W (f=1 GHz)/ 150 W (f=6 GHz)

Half-Power Beamwidth (E-plane): 46° ±10°

Half-Power Beamwidth (H-plane): 48° ±10°

Front-to-Back Ratio: 25 dB (typical)

Cross-Polarisation Rejection: 30 dB (typical)

Dimensions (W x H x D): 460 (+215) × 270 × 270 mm

Weight: 3.7 kg

  Datasheet
