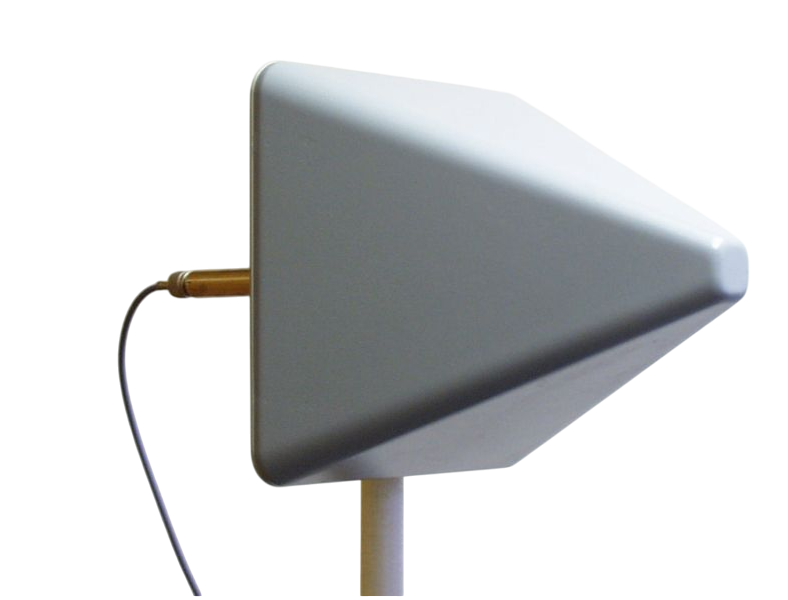

Schwarzbeck STLP 9148 Microwave Log.-Per. Antenna (1 – 18 GHz)

Nominal Frequency Range: 1 – 18 GHz

Useable Frequency Range: 0.7 – 20 GHz

Nominal Impedance: 50 Ω

Connector: N female

Mounting Tube: Ø = 22 mm, L = 185 mm

Isotropic Gain: typ. 8.6 dBi ± 1 dB

Antenna Factor: 20 ... 49 dB/m

SWR typ.: < 2

Max. Input Power: 50 W

Half-Power Beamwidth (E-Plane): 58°

Half-Power Beamwidth (H-Plane): 60°

Front to Back Ratio: > 25 dB

Cross Polarisation Rejection: > 28 dB

Dimensions: 490 × 270 × 270 mm

Weight: 1.2 kg
