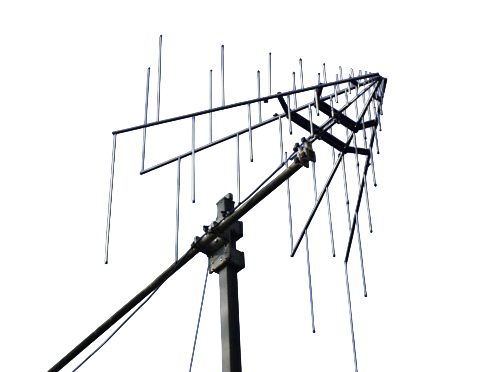

Schwarzbeck STLP 9128 F Stacked Log.-Periodic Antenna (70 MHz ~1.5 GHz / 55 MHz ~ 3 GHz)

Frequency Range: 70 MHz ... 1.5 GHz/55 MHz ... 3 GHz

Isotropic Gain (Farfield): 9 ± 1 dBi

Antenna Factor: -2 ... +40 dB/m

Nominal Impedance: 50 Ω

Standing Wave Ratio SWR max:: <2.3

Standing Wave Ratio SWR typical: 1.5

Polarisation: Linear

3 dB Beamwidth typ. (E-Plane): 60°–75°

3 dB Beamwidth typ. (H-Plane): 50°–65°

Max. Input Power: 1.5 kW (intermitt.)/ 1 kW (cont.)/N-Connector female

Max. Input Power (Option): 3 kW (intermitt.)/ 2 kW (cont.)/7-16 connector female

Mounting Tube: 22 mm

Width × Length × Height: 1.95 × 2.26 × 2.54 m

Weight: 11 kg
