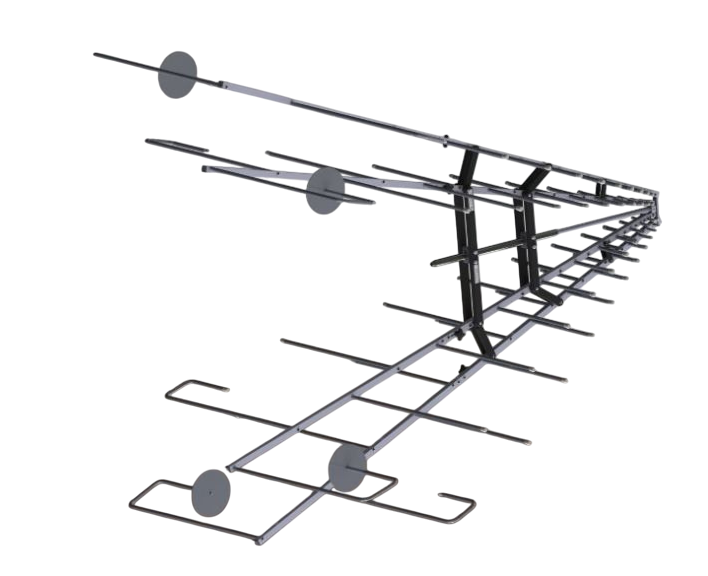

Schwarzbeck STLP 9128 E Stacked Log.-Periodic Antenna (80 - 1700 MHz)
ManufacturerSchwarzbeck(View more products from this manufacturer)
ModelSTLP 9128 E
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Nominal Frequency Range: 80 - 1700 MHz
Usable Frequency Range: 80 - 2700 MHz
Nominal Impedance: 50 Ω
Standing Wave Ratio (SWR) typical: < 1.5
Mounting: 22 mm Tube
3 dB Beamwidth typ. (E-Plane): 47° - 87°
3 dB Beamwidth typ. (H-Plane): 41° - 107°
Max. Input Power (N-connector): 1 kW (const.)/1.5 kW (intermitt)
Max. Input Power (7/16-connector): 2 kW (const.)/3 kW (intermitt)
Mounting Tube: Ø = 22 mm
Width × Length × Height (while set to vertical polarisation): 1.5 × 1.74 × 1.4 m
Weight: 9.8 kg
