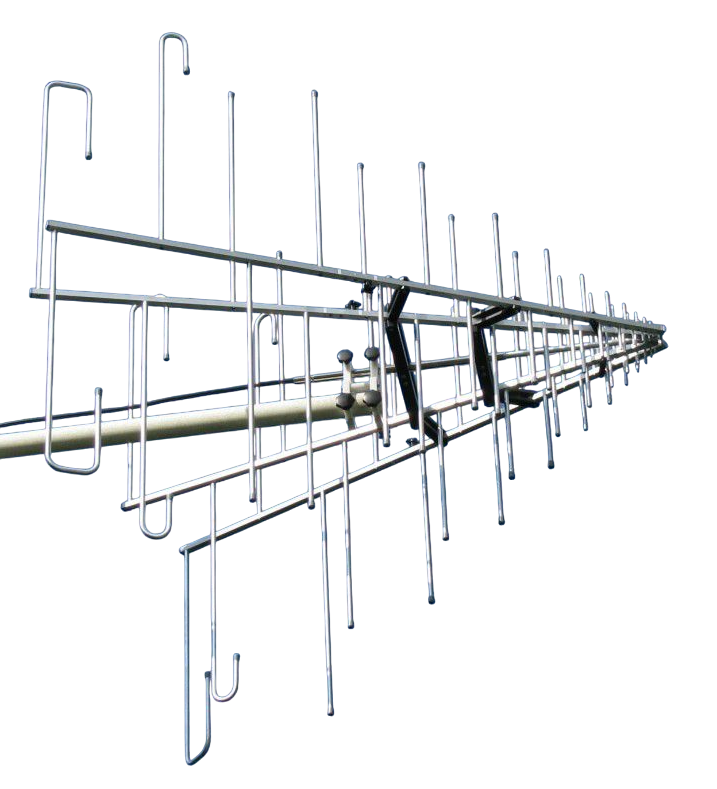

Schwarzbeck STLP 9128 D Stacked Log.-Periodic Antenna (80 MHz ~ 3 GHz)

Nominal frequency range: 80 MHz ... 3 GHz

Usable frequency range: 70 MHz ... 4 GHz

Isotropic gain: 9 ± 3 dBi

Antenna factor: 2 ... 32 dB/m

Nominal impedance: 50 Ω

Standing Wave Ratio (SWR) typical: 1.6 (f < 3 GHz)

Front to Back Ratio: 8 - 22 dB

Cross polarisation: >30 dB

3 dB beam width typ. (E-Plane): 60° - 75°

3 dB beam width typ. (H-Plane): 50° - 65°

Max. input power (N-Connector): 1.5 kW (intermitt.), 1 kW (const.)

Max. input power (7/16-Connector): 3 kW (intermitt.), 2 kW (const.)

Mounting tube: Ø = 22 mm

Width × length × height while set up in vertical polarisation: 1480 × 1480 × 1340 mm

Weight: 8.1 kg

  Datasheet
