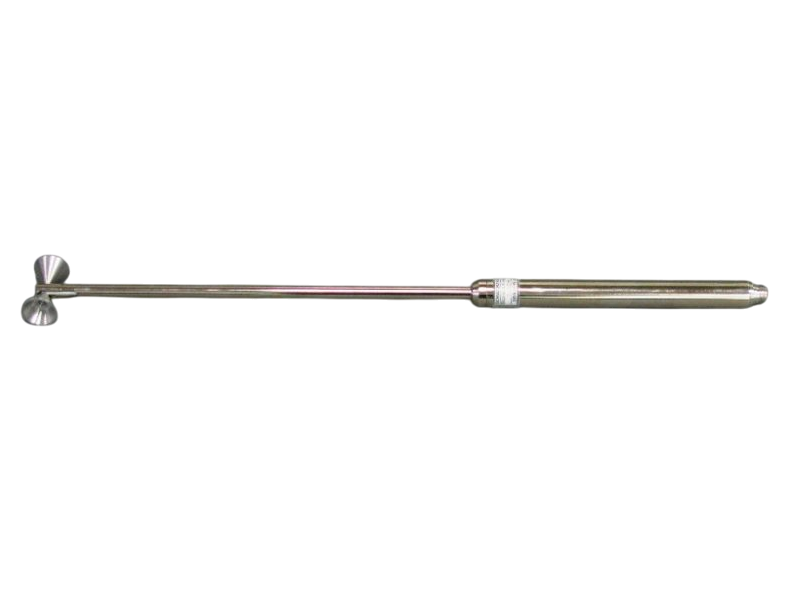

Schwarzbeck SBA 9119 Microwave Biconical Broadband Antenna (1 – 6 GHz)

Nominal Frequency range:1 - 6 GHz

Useable Frequency range: 0.5 - 6.5 GHz

Connector: female 50 Ω N

Mounting tube: LH=560mm, d=22 mm

Index Ring:LR=190mm

Element length total:LE = 50 mm

Element diameter:D = 28 mm

Isotropic gain: typ. typ. -10....+2 dBi (1 - 6 GHz)

Antenna Factor: 32 ... 48 dB/m

SWR typ.: 1.5-5 (1.3 - 6 GHz)

Balun (low loss):1:1

Inversion Symmetry: typ. < 0.5 dB (1 - 6 GHz)

Cross Polarisation Rejection: < -20 dB

Max. Input Power: 20W

Half-Power Beamwidth (E-plane): 84° - 45°

Weight: 400g
