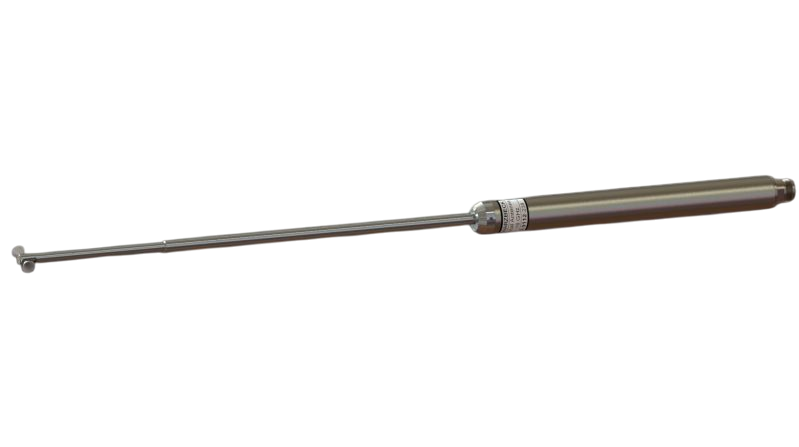

Schwarzbeck SBA 9112 Microwave Biconical Broadband Antenna (3 – 18 GHz)

Nominal Frequency range:3 -18 GHz

Useable Frequency range: 1 -18 GHz

Connector: female 50 Ω N

Mounting tube: LH=560mm, d=22 mm

Index Ring:LR=190mm

Element length total:LE = 20 mm

Element diameter:D = 9 mm

Isotropic gain: typ. -4....+3 dBi(3.5 - 18 GHz)

Antenna Factor: 43 ... 53 dB/m

SWR typ.: 1.5-5 (4 - 18 GHz)

Balun (low loss):1:1

Inversion Symmetry: typ. < 0.5 dB(3 - 18 GHz)

Cross Polarisation Rejection: < - 20 dB

Max. Input Power: 10 W

Half-Power Beamwidth (E-plane): 84° - 45°

Weight: 420 g
