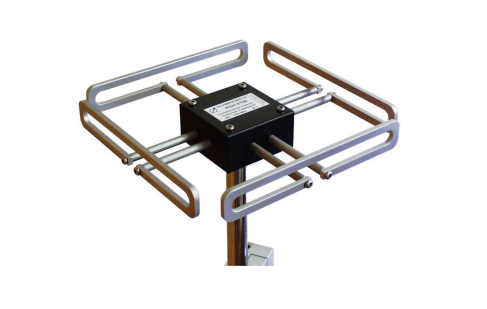

Schwarzbeck RSH 4786 Horizontal Polarised Omnidirectional UHF Antenna (470 – 860 MHz)
ManufacturerSchwarzbeck(View more products from this manufacturer)
ModelRSH 4786
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency range: 470 – 860 MHz
Useable Frequency Range: 350 – 1050 MHz
Impedance: 50 Ω
Connector: N female
Mounting tube: 22 mm
Isotropic gain: typ. –2 ± 3 dBi
Antenna Factor: 23 … 32 dB/m
Deviation from perfect omnidirectional pattern: < ±2 dB
Vertical pattern: Dipole shape
Max. Input Power: 100 W
Weight: 1 kg
Dimensions: 240 × 240 × 260 mm
Recommended spacing between elements and rooftop: = 220–280 mm
