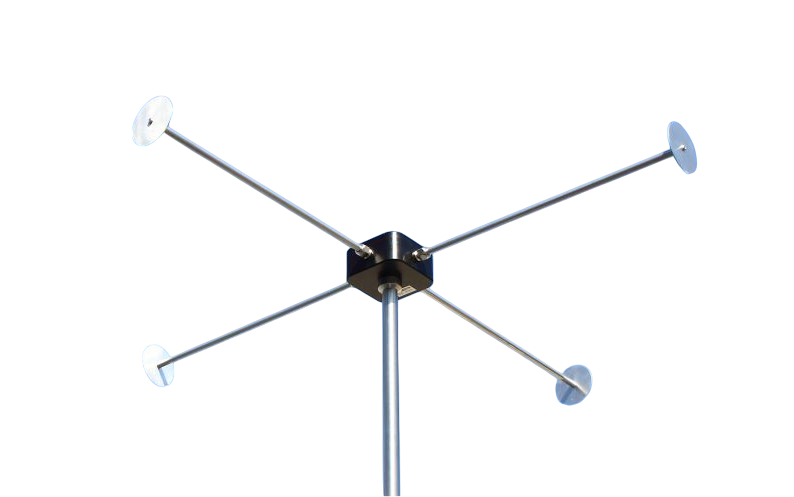

Schwarzbeck RSH 113 Horizontal Polarized Omnidirectional Antenna (108 – 118 MHz)
ManufacturerSchwarzbeck(View more products from this manufacturer)
ModelRSH 113
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Nominal Frequency Range: 108 – 118 MHz
Isotropic Gain: 0 ±1 dBi
Antenna Factor: 10 ... 12 dB/m
Nominal Impedance: 50 Ω
Standing Wave Ratio SWR typical: =1.5
Standing Wave Ratio SWR max.: 2.0
Deviation from perfect omnidirectional radiation pattern: < ±3 dB
Max. Input Power: 100 W
Connector: N-Connector female
Mount: 22 mm Tube
Width x Length x Height: 0.96 × 0.96 × 0.56 m
Weight: 2.0 kg
