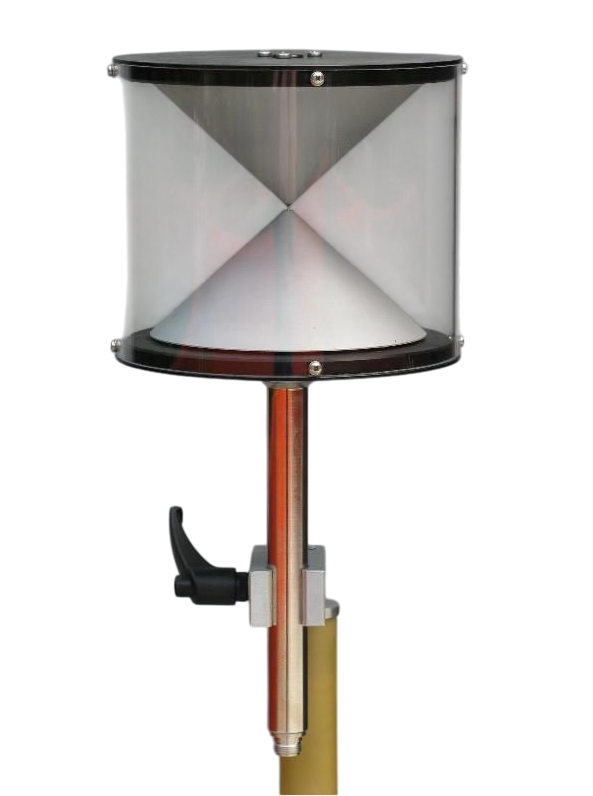

Schwarzbeck RS 0460 Biconical Omnidirectional Antenna (0.4 – 6 GHz)
ManufacturerSchwarzbeck(View more products from this manufacturer)
ModelRS 0460
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency range: 0.4 – 6 GHz
Useable Frequency Range: 0.4 – 8 GHz
Impedance: 50 Ω
Connector: N female
Mounting tube: 22 mm
Isotropic gain: typ. -3…+3 dBi
Antenna Factor: 25 … 44 dB/m
SWR typ.: 1.5
SWR max.: 3 (f > 500 MHz)
Max. Input Power: 100 W
Half-Power Beamwidth (E-plane): 80° - 50°
Pattern Deviation from Omnidirectional: typ. < +/- 1 dB
Weight: 2.6 kg
Dimensions: 185 x 185 x 370 mm
