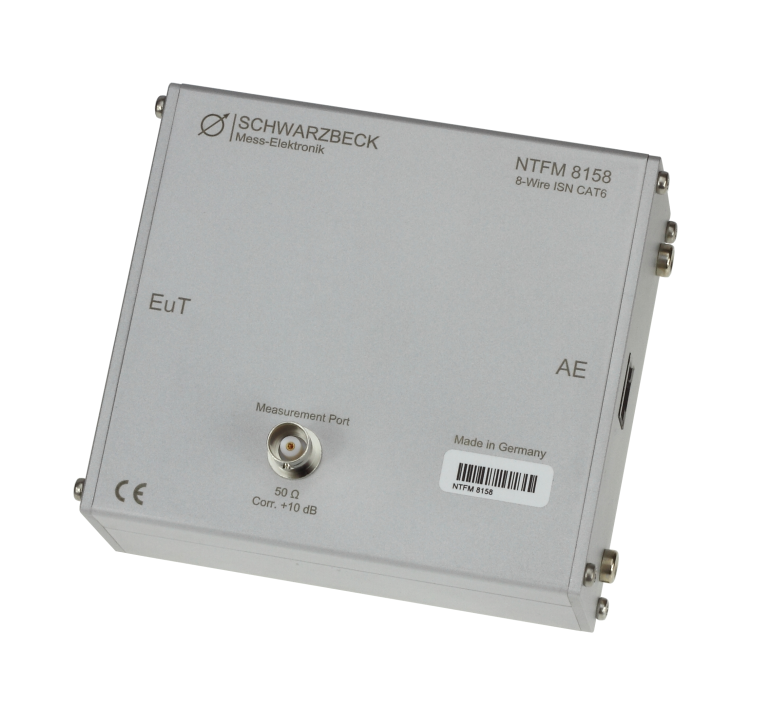

Schwarzbeck NTFM 8158 8-wire Impedance Stabilization Network (150 kHz – 30 MHz, 150 kHz – 80 MHz)

Frequency range (ISN): 150 kHz – 30 MHz

Frequency range (CDN): 150 kHz – 80 MHz

Type: T8, T4, T2-ISN, CDN (EAB 80-150 required)

Insertion loss: differential mode AE–EuT: typ.: < 1 dB 100 kHz to 30 MHz, typ.: < 2.5 dB 30 MHz to 250 MHz

Decoupling AE–EuT: >55 dB

Longitudinal Conversion Loss (LCL): 75 dB @ 150 kHz, 59 dB @ 30 MHz

Voltage division factor for asymmetrical voltage: 10 dB ± 1 dB

Impedance (asymm.): ≤30 MHz: 150 Ω ± 20 Ω, >30 MHz: 150 Ω + 60 Ω / –45 Ω

Common mode phase angle: 0° ± 20°

Connectors AE, EuT: RJ-45 (8P8C)

Current max.: 960 mA (IEEE Std 802.3bt-2018 Ch.145)

Max. voltage: 63 VAC / 100 VDC

Measurement port: BNC 50 Ω female

Crosstalk PSFEXT: typ.: > 66 dB @ 150 kHz, typ.: > 46 dB @ 10 MHz, typ.: > 36 dB @ 30 MHz

Weight: 465 g

Outer dimensions (W × H × D): 125 mm × 62 mm × 105 mm
