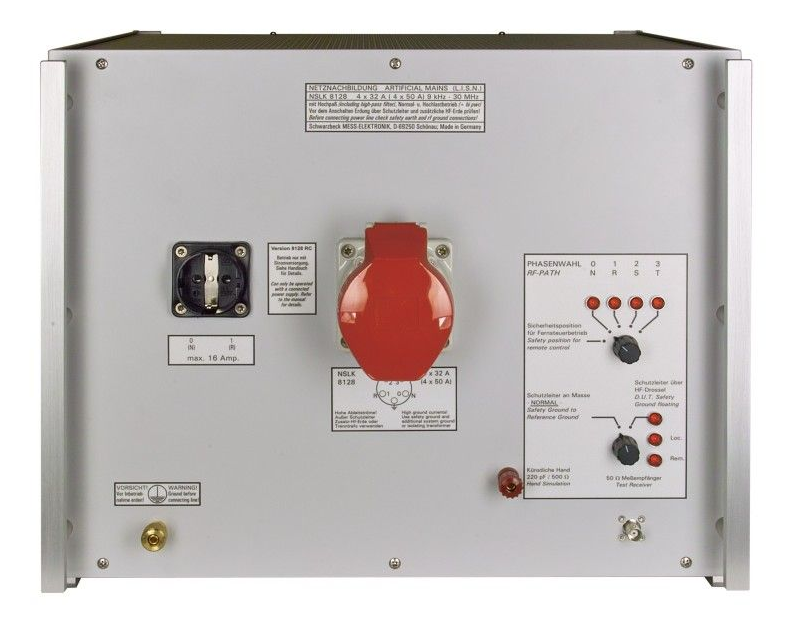

Schwarzbeck NSLK 8128 Line Impedance Stabilisation Network (9 kHz – 30 MHz, 4x 32 A)

Frequency range: 9 kHz – 30 MHz

AMN impedance: (50 µH + 5 Ω) || 50 Ω

Pre-filter choke: 250 µH

Maximum continuous current CEE connector:: 4 × 32 A

Maximum continuous current Schuko connector:: 16 A

Maximum voltage: 250 VAC / 400 VDC

Standard: CISPR 16-1-2

Supply cable: fünfadrige Netzanschlußleitung mit CEE Stecker, fest verdrahtet hard-wired five-wire connection cable with CEE plug (IEC 60309)

Connector for EuT: Schukosteckdose und CEE Steckdose Schuko plug socket (Type F) and CEE socket

Weight: 34.2 kg (38.5 kg RC)

Dimensions housing (WxHxD): 450 mm × 370 mm × 470 mm

Connector for „artificial hand“: 4mm Buchse mit Schraubklemme M6, nicht abschraubbar 4mm banana socket with screw terminal 6 mm, not removable

Connector to EMI receiver: BNC-Buchse, 50 Ω BNC socket, 50 Ω
