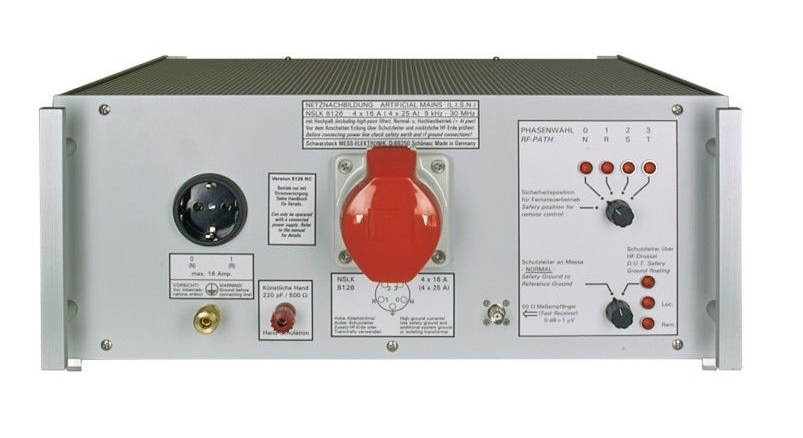

Schwarzbeck NSLK 8126 Line Impedance Stabilisation Network (9 kHz – 30 MHz, 4x 16 A)

Frequency range: 9 kHz – 30 MHz

AMN impedance: (50 µH + 5 Ω) || 50 Ω

Pre-filter choke: 250 µH

Maximum continuous current: 4 × 16 A

CEE connector: 16 A

Maximum voltage: 250 VAC / 400 VDC

Standard: CISPR 16-1-2

Supply cable: hard-wired five-wire connection cable with CEE plug (IEC 60309)

Connector for EuT: Schuko plug socket (Type F) and CEE socket

Weight: ~13 kg

Dimensions housing (WxHxD): 450 mm × 190 mm × 470 mm

Connector for „artificial hand“: 4 mm socket with screw terminal 6 mm, not removable

Connector to EMI receiver: BNC socket, 50 Ω
