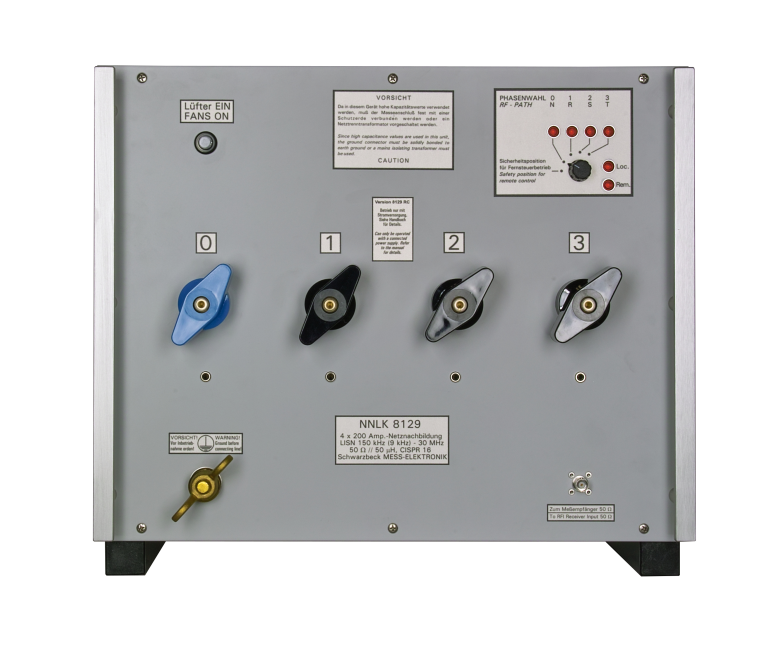

Schwarzbeck NNLK 8129 Line Impedance Stabilisation Network (150 kHz – 30 MHz, 4 × 200 A)
ManufacturerSchwarzbeck(View more products from this manufacturer)
ModelNNLK 8129
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency range: 150 kHz – 30 MHz
AMN impedance: 50 µH || 50 Ω
Maximum continuous current: 4 × 200 A
Maximum voltage: 250 VAC, 50/60 Hz / 400 VDC
Maximum voltage (with option 400/700 V): 400 VAC, 50/60 Hz / 800 VDC
Standard: CISPR 16-1-2
Connector for supply: Wing terminals 12 mm, removable
Connector for EUT: Wing terminals 12 mm, removable
Weight: ~30 kg
Dimensions (housing incl. wing terminals, W × H × D): 448 mm x 383 mm x 605 mm
Connector to EMI receiver: BNC socket, 50 Ω
