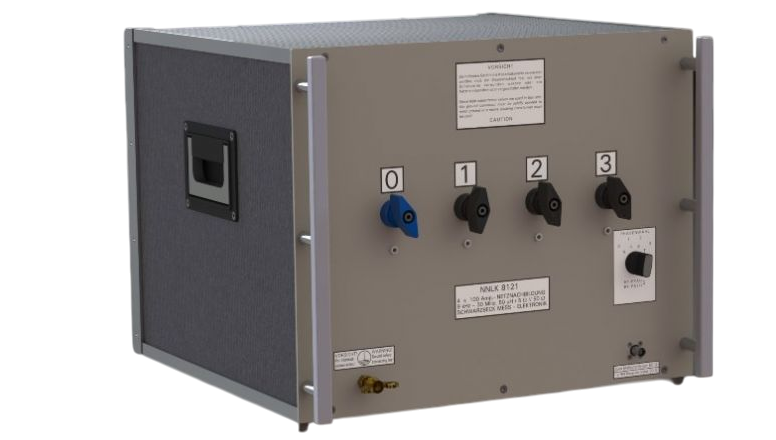

Schwarzbeck NNLK 8121 Line Impedance Stabilisation Network (9 kHz – 30 MHz, 4 × 100 A)

Frequency range: 9 kHz – 30 MHz

AMN impedance: (50 µH + 5 Ω) || 50 Ω

Pre-filter choke: 250 µH

Maximum continuous current: 4 × 50 A

Maximum current for a short period of time: 4 × 100 A

Maximum voltage: 250 VAC/350 VDC

Maximum voltage with option 400/700: 400 VAC/630 VDC

Standard: CISPR 16-1-2

Connector for mains: Wing terminals, 8 mm, not removable

Connector for EuT: Wing terminals, 8 mm, not removable

Weight: ~33 kg

Dimensions housing (WxHxD): 450 mm × 370 mm × 480 mm

Dimensions housing in case the Option Fans is installed (WxHxD): 450 mm × 470 mm × 480 mm

Connector to EMI receiver: BNC socket, 50 Ω
