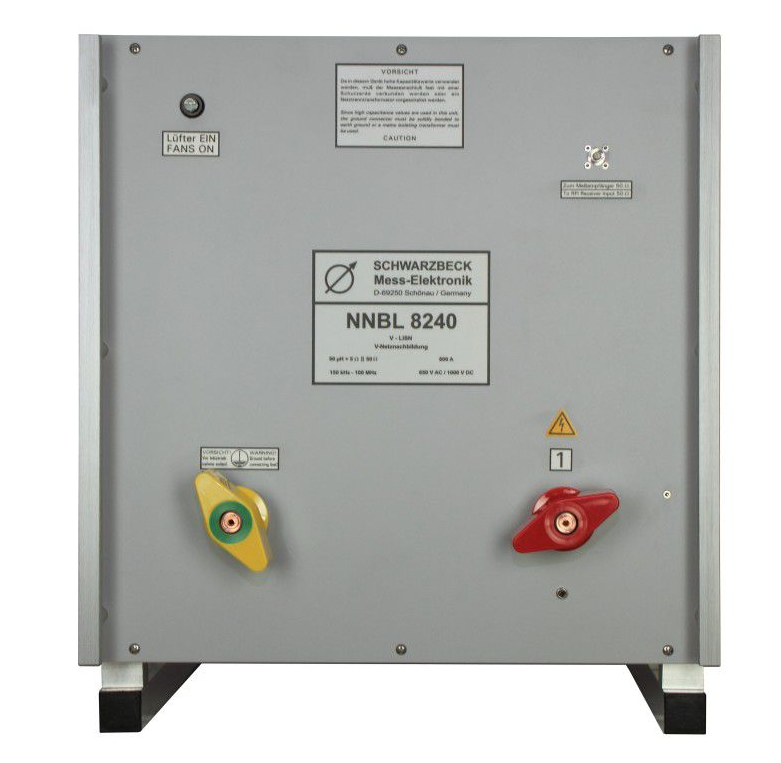

Schwarzbeck NNBL 8240 LISN according to MIL 461 / MIL 462 ((9) 150 kHz – 100 MHz, 800 A)

Frequency Range: (9) 150 kHz – 100 MHz

Max. continuous current: 800 A

Max. current (limited time): 1000 A

Max. voltage DC: 1000 V

Max. voltage 50/60 Hz: 650 V

Impedance: (50 µH + 5 Ω) || 50 Ω ±20%

Resistance of coil: < 3 mΩ

Weight: 45 kg

Connector EUT: Wing terminals, 16 mm, removable

RF output: BNC (optional N)

Dimensions incl. connectors (W × H × D): 450 mm × 500 mm × 750 mm

Fuse for fans: 2 A, T

According to standard: MIL-STD-461E
