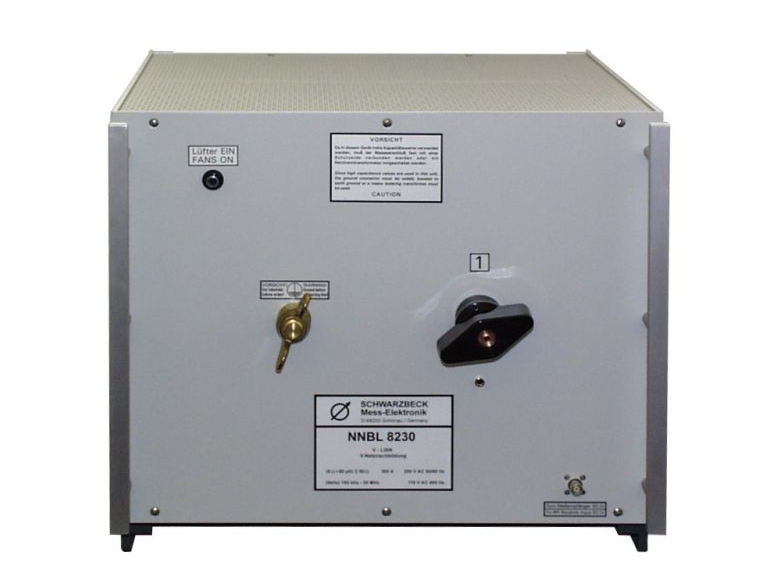

Schwarzbeck NNBL 8230 LISN according to MIL 461 / MIL 462 (9 kHz – 30 MHz, 300 A)

Frequency Range: 9 kHz – 30 MHz

Max. continuous current: 300 A

Max. current (limited time): 500 A

Max. Voltage (DC): 250 V

Max. Voltage (AC 50/60 Hz): 250 V

Max. Voltage (AC 400 Hz): 140 V

Impedance: (50 µH + 50 Ω) || 50 Ω (±20%)

DC-Resistance mains–EUT: approx. 10 mΩ

Weight: 20 kg

Dimensions (housing W × H × D): 0.45 × 0.39 × 0.54 m

EUT and mains Connectors: Wing terminals M16×1.5

Connector for receiver: BNC female 50 Ω
