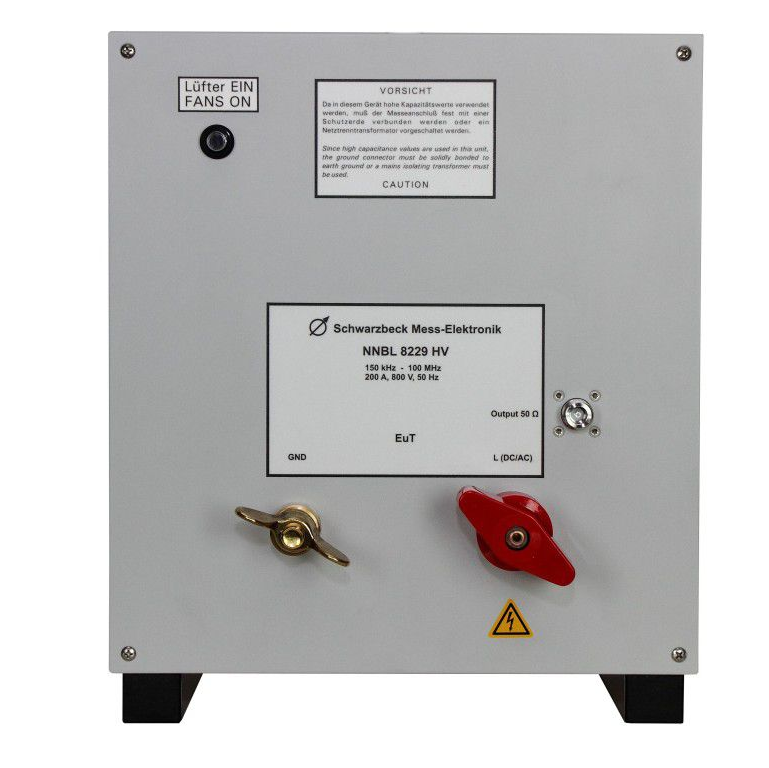

Schwarzbeck NNBL 8229-HV LISN according to MIL 461 / MIL 462 ((9) 150 kHz – 100 MHz, 200 A)

Frequency Range: (9) 150 kHz – 100 MHz

Max. continuous current: 200 A

Max. voltage DC: 1000 V

Max. voltage 50/60 Hz: 800 V

Impedance: (50 µH + 5 Ω) || 50 Ω ±20%

Resistance of coil: < 3 mΩ

Weight: 10.5 kg

Connector EUT: Wing terminals, 12 mm, removable

RF output: BNC (optional N)

Dimensions excl. connectors (W × H × D): 300 mm × 350 mm × 260 mm

Dimensions incl. connectors (W × H × D): 300 mm × 350 mm × 370 mm

Fuse for fans: 315 mA, T

According to standard: MIL-STD-461E
