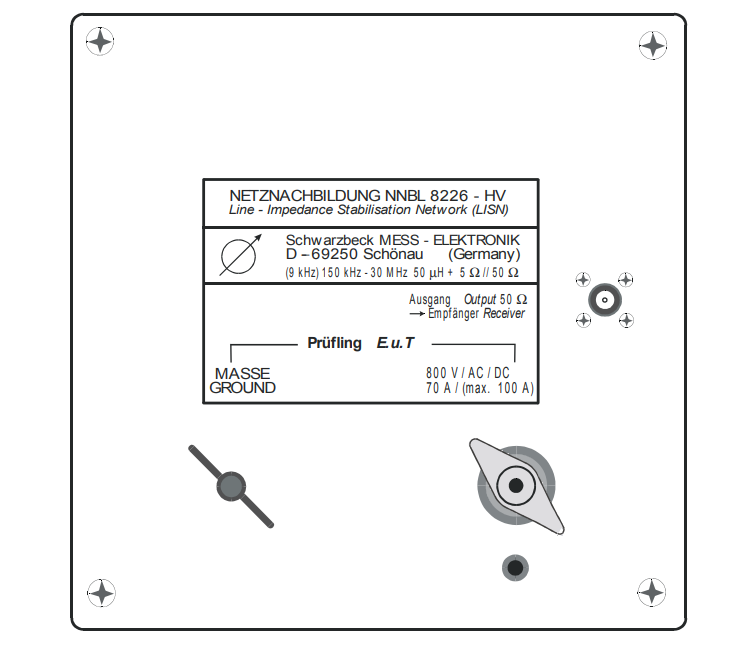

Schwarzbeck NNBL 8226-HV Line Impedance Stabilisation (150 kHz – 100 MHz, 70 A)
ManufacturerSchwarzbeck(View more products from this manufacturer)
ModelNNBL 8226-HV
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency Range: 150 kHz - 100 MHz
Max. cont. current: 70 A
Max. current (limited time): 100 A
Max Voltage (DC): 800 V
Max. Voltage (AC 50/60 Hz): 800 V
Max. Voltage (AC 400 Hz): 140 V
Impedance at EuT-Terminals: (50µH+50Ω)||50Ω (+/- 20 %)
DC-Resistance mains-EuT: ca. 10 mΩ
Weight: 4.5 kg
Dimensions (housing WxHxD): 0.22 × 0.22 × 0.26 m
