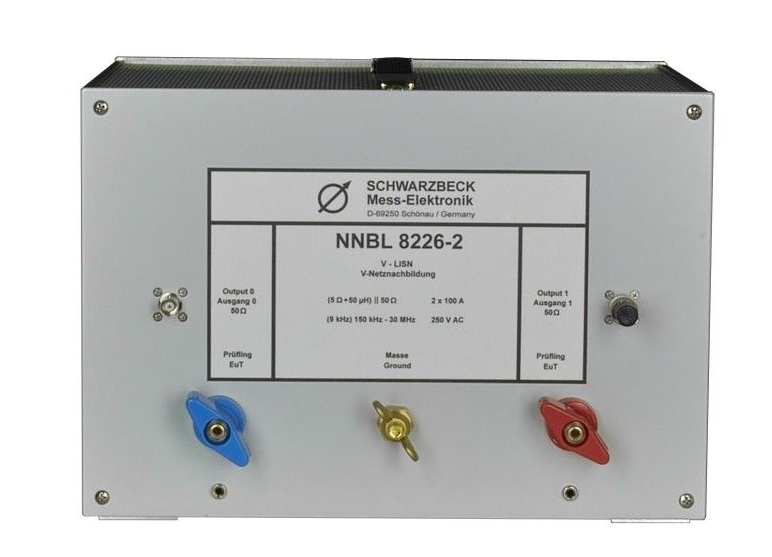

Schwarzbeck NNBL 8226-2 LISN according to MIL 461 / MIL 462 ((0.009) 0.15 – 30 (100) MHz, 70 A)
ManufacturerSchwarzbeck(View more products from this manufacturer)
ModelNNBL 8226-2
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency Range: (0.009) 0.15 – 30 (100) MHz
Max. continuous current: 70 A
Max. current (limited time): 100 A
Max. Voltage (DC): 500 V
Max. Voltage (AC 50/60 Hz): 250 V
Max. Voltage (AC 400 Hz): 140 V
Impedance: (50 µH + 5 Ω) || 50 Ω (±20%)
DC-Resistance mains–EUT: approx. 10 mΩ
EUT Connectors: Wing terminals
Dimensions: 220 × 320 × 260 (+2×35) mm
Weight: 6.5 kg
