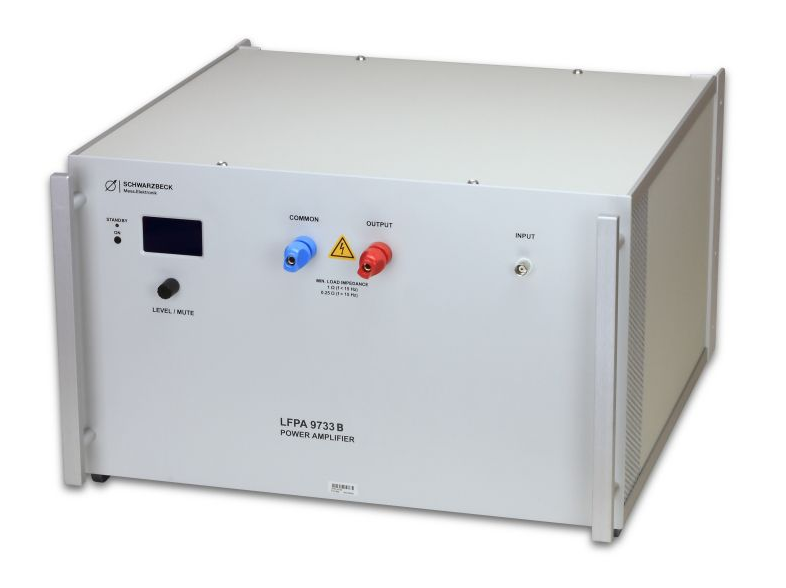

Schwarzbeck LFPA 9733 B Power Amplifier (5 Hz – 1 MHz, 26 dB ±3 dB)

Frequency range (nominal): 5 Hz – 1 MHz

Gain (without load): 26 dB ±3 dB

AC Output current: 28 Aₘₛ

(50% duty cycle up to 5 min.)

AC Continuous operating current: 14 Aₘₛ

AC Impedance of load min.: 0.25 Ω

Max. output voltage: 60 Vₚₑₐₖ @ 5 Hz – 250 kHz

Linearly decreasing to 30 Vₚₑₐₖ @ 1 MHz

Max. output current: 40 Aₚₑₐₖ

Typical input impedance: 1 kΩ

Input jack: BNC (isolated)

Output Connectors: Wing terminals

Ambient temperature: –10°C / +40°C

Power supply: 230 VAC Power-Con

Current consumption: <16 Aₘₛ

Material of the housing: Aluminium

Housing dimensions (W × D × H): 448 × 410 × 268 mm

Overall dimensions: 448 × 473 × 280 mm

Weight: ca. 40 kg
