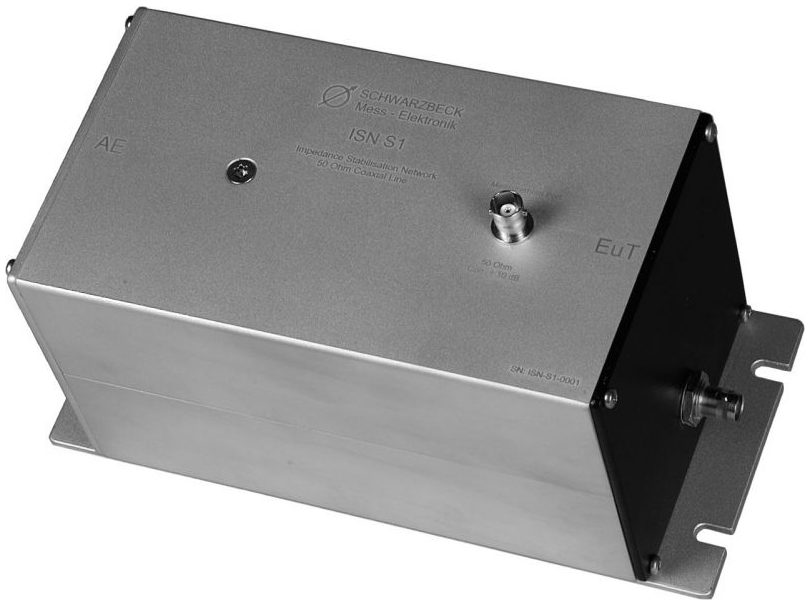

Schwarzbeck ISN S1 Impedance Stabilisation Network (150 kHz – 230 MHz)

Frequency range: 150 kHz – 230 MHz

Type of cable: Coaxial, 50 Ω

Connector: BNC

Max. voltage line – ground: 150 V DC, 100 V AC

Max. line current/path: 1 A DC

Common mode impedance EuT–side:

150 kHz – 30 MHz: 150 Ω ± 20 Ω

30 MHz – 230 MHz: 100 Ω + 60 Ω / –45 Ω

Phase error: 0° ± 20°

Measuring port: 50 Ω BNC

Max. voltage measuring port: < 20 V AC

Voltage division factor EuT–measuring port:

150 kHz – 30 MHz: 9.5 dB ± 1 dB

30 MHz – 230 MHz: 9.5 dB +4 dB / –2 dB

3 dB transmission bandwidth EuT–AE: > 250 MHz

Dimensions (W × H × D): 225 mm × 129 mm × 105 mm

Weight: ~1265 g

Acc. to standard: CISPR 22, Annex D.9; CISPR 32, Annex G.9
