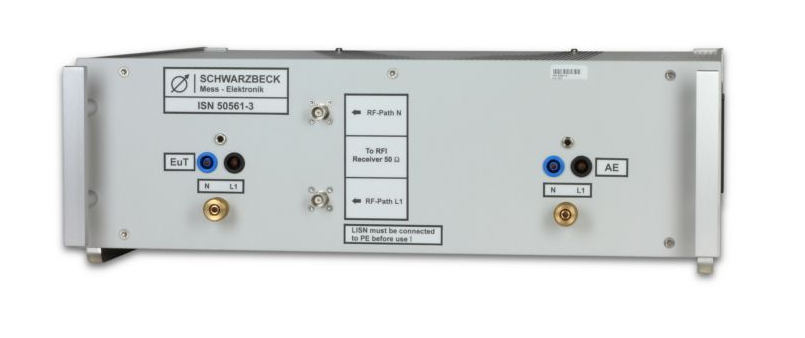

Schwarzbeck ISN 50561-3 Impedance Stabilization Network for PLC (30 MHz … 118 MHz)

Frequency range: 30 MHz … 118 MHz

Maximum operating current: 16 A

Maximum operating voltage: 265 VAC @ 50/60 Hz

Differential mode impedance: 100 Ω ±20% (30 MHz – 87.5 MHz)

Differential attenuation: 40 dB ±4 dB (1.6 MHz – 87.5 MHz)

Common mode impedance: 50 Ω +30% / ‑10% (30 MHz – 118 MHz)

Measurement port: 2 × BNC (female), 50 Ω

Voltage division factor EuT(diff. mode) - measurement port (common mode): typical 5.7 dB ±0.5 dB

Housing material: Aluminium

Dimensions: 445 mm × 145 mm × 470 mm

Weight: 8 kg

Connectors EuT, CS: 4 mm safety laboratory jacks

Ground connectors: bottom of case, 4‑mm lab jack, aluminium bracket at rear side
