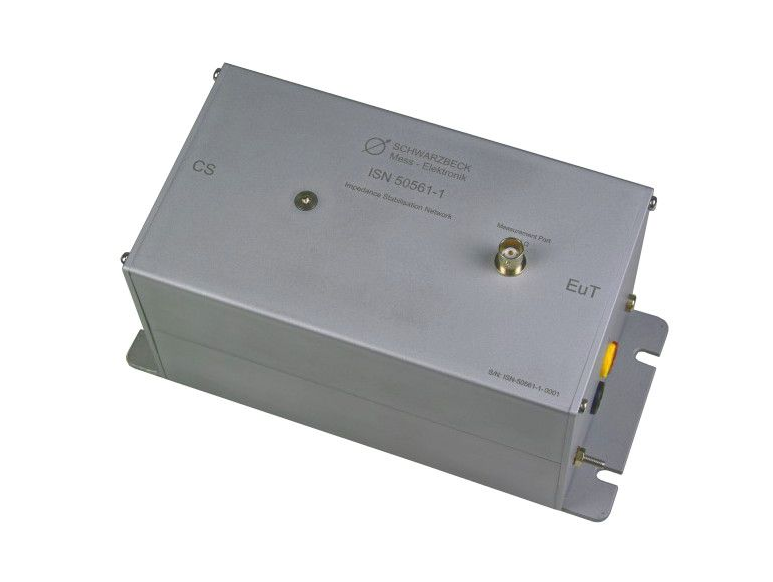

Schwarzbeck ISN 50561-1 Impedance Stabilization Network for PLC (1.6 MHz … 30 MHz)

Frequency range: 1.6 MHz … 30 MHz

Longitudinal Conversion Loss (LCL): > 55 dB

Maximum operating current: 16 A

Maximum operating voltage: 250 VAC @ 50/60 Hz

Differential mode (line‑to‑line) impedance: 100 Ω ±10 Ω

Differential mode phase angle: 0° ±25°

Common mode impedance: 25 Ω ±3 Ω

Phase angle: 0° ±25°

Measurement port: BNC jack, 50 Ω

Voltage division factor EuT – measurement port:: 0 dB ±1 dB

Isolation CS – measurement port: > 55 dB

Insertion loss EuT – CS: < 3 dB

Proof voltage L/N to housing: > 1000 VDC

Housing material: Aluminium

Dimensions: 225 x 120 x 105 mm

Weight: ≈ 1300 g

Connectors for EuT, CS: 4 mm safety laboratory jacks

Ground connectors: bottom of case, 4 mm laboratory jack and M4 bolt and nut
