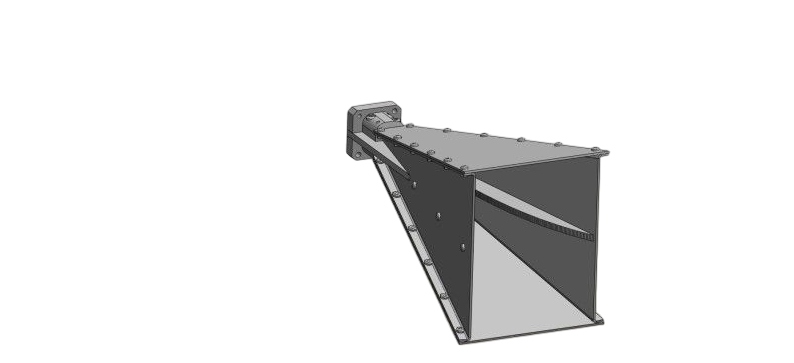

Schwarzbeck HWRD 750 Double Ridged Broadband Horn Antenna (7.5...18 GHz)

Nominal Frequency Range: 7.5...18 GHz

Isotropic Gain: 16 ... 21 dBi i

Antenna Factor: 31 ... 37 dB/m

Nominal Impedance: 50 Ω

Standing Wave Ratio SWR typical:1.2

Standing Wave Ratio SWR max.: < 2 (8-18 GHz)

Front to Back Ratio: typ. > 30 dB

Cross Polarisation: typ. > 30 dB

3 dB Beamwidth typ. (E-Plane): 12°-19°

3 dB Beamwidth typ. (H-Plane): 12°-20°

6 dB Beamwidth typ. (E-Plane): 20°-30°

6 dB Beamwidth typ. (H-Plane): 20°-30°

Max. Input Power: 1 kW cont.

Connector: Waveguide flange: WRD750D24

Mount: Waveguide

Width x Length x Thickness: 124 x 241 x 104 mm

Weight: 390 g

 Datasheet
