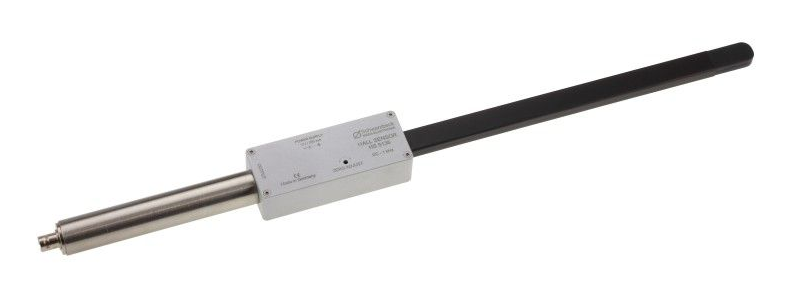

Schwarzbeck HS 5136 Hall sensor for magnetic field measurements (DC…1 kHz)

Nominal frequency range: DC…1 kHz

Nominal measuring range: 0 … 7000 A/m (peak)

Extended measuring range: 0 … 9000 A/m (peak)

Nominal conversion factor: 1 (A/m) / mV

Load impedance: > 2 kΩ

Non-linearity error: 0.8 %

Power supply: 12 V DC ±3 % / 250 mA

Operating temperature ambient: 15°C – 30°C

Housing: Aluminium

Dimensions: approx. 470 × 42 × 28 mm

Mounting: D = 22 mm, L = 120 mm

Weight: 300 g

Connector: BNC female
