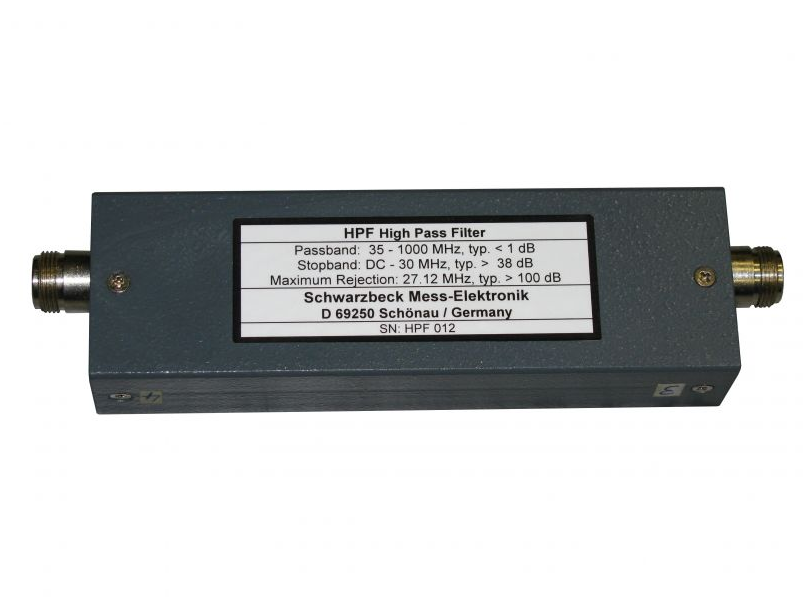

Schwarzbeck HPF High Pass Filter (35 – 1000 MHz)
ManufacturerSchwarzbeck(View more products from this manufacturer)
ModelHPF
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Nominal frequency range: 35 – 1000 MHz
Nominal impedance: 50 Ω
Rejection maximum at 27.12 MHz: > 100 dB
Passband insertion loss: typ. < 1 dB
Stopband insertion loss: typ. > 38 dB
Standing wave ratio SWR typical: < 2
Connectors: N-female
Continuous power: 100 W
Box dimensions: 160 × 50 × 30 mm
Overall dimensions: 190 × 50 × 30 mm
Weight: 0.55 kg
