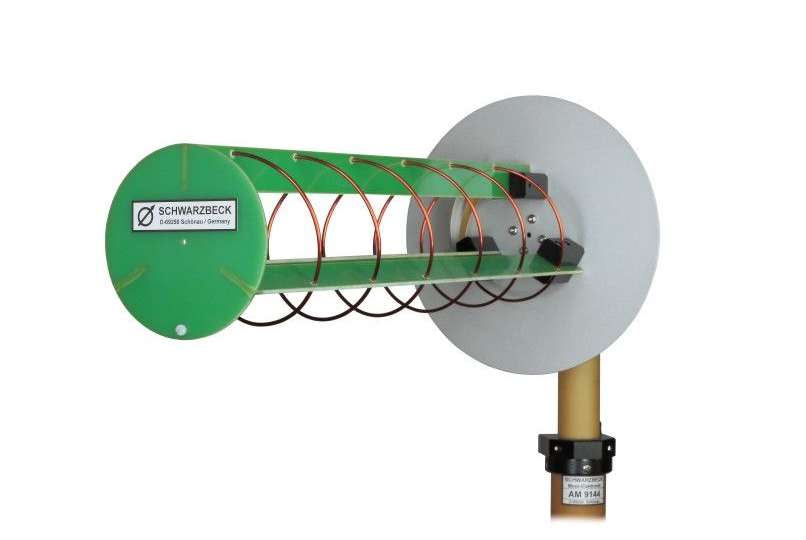

Schwarzbeck HLX 0810-LHCP Helical Antennas (750 MHz...1050 MHz)

Left hand circular polarisation

Nominal Frequency Range: 750 MHz...1050 MHz

Usable Frequency Range: 600 MHz...1.1 GHz

Isotropic Gain: typ. 6 - 12 dBi

Antenna Factor: typ. 17 - 20 dB/m

Nominal Impedance: 50 Ω

SWR max.: < 2.2

SWR typical: < 1.5

Front to Back Ratio: typ. > 15 dB

3 dB Beamwidth typ.: 56° - 33°

6 dB Beamwidth typ.: 70° - 50°

Max. Input Power: 300 W

Connector: N-Connector female

Mount (Tube): 22 mm, L = 200 mm

Width x Length x Thickness: 0.24 ± 0.50 (+0.2) x 0.24 m

Weight: 3.1 kg

Recommended Accessories: AM 9144 Mast, AA 9202 / AA 9203 Adapter
