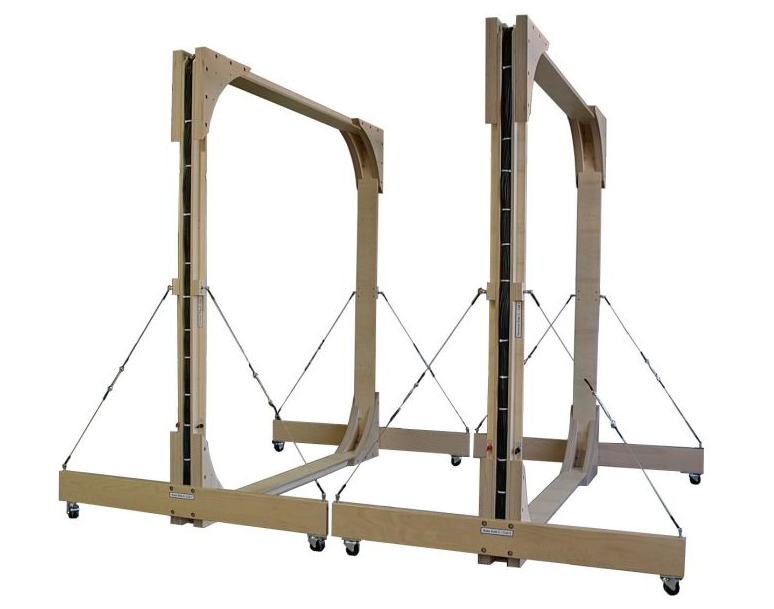

Schwarzbeck HHS 5230-100 Helmholtz Coils (650 A/m @ D = 1.8 m, DC – 5 kHz)

Square Side Length: 3 m

Number of turns (per Coil): 100

Maximum Coil Current: 16 A / 5 min.

Nominal Coil Current: 8 A continuous

Coil Spacings: D > 1.13 m

Coil Spacing for best Field Uniformity: D = 1.8 m

Maximum Magnetic Field Strength: 650 A/m @ D = 1.8 m

Nominal Magnetic Field Strength: 325 A/m @ D = 1.8 m

Magnetic Fieldstrength, 1 A Coil Current: 50.8 A/m @ D = 1.8 m; 37.6 A/m @ D = 2 m; 10.3 A/m @ D = 5 m

Current required for 1 A/m: 19.7 mA @ D = 1.13 m; 26.6 mA @ D = 2 m; 97.1 mA @ D = 5 m

Mechanical Dimensions: W: 2.0 × H: 3.10 × B: 3.18

Ground Clearance: 0.12 m

Terminals: 4 mm female with universal wing terminal

Usable Frequency Range: DC – 5 kHz

Inductance (per Coil): 100 mH

Resistance (per Coil): 6 Ω

Coil Capacitance (per Coil): 1.4 nF

Resonant Frequency (per Coil): > 10 kHz, typ. 13 kHz

Weight (per Coil): 190 kg
