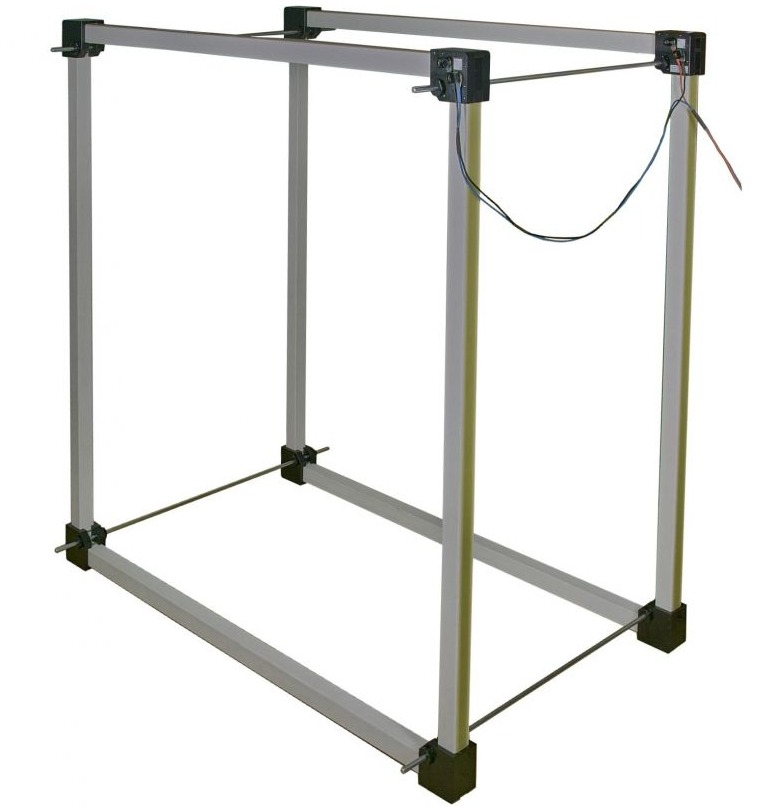

Schwarzbeck HHS 5213-100 Helmholtz Coils (15 A, 0 – 5 kHz)

Number of turns (per coil): 100

Maximum coil current: 15 A, 5 min.

Nominal coil current: 9 A continuous

Nominal Magnetic Field Strength: 900.9 A/m continuous

Inner side length of the coils: 1.255 m

Electrical side length of the coil: 1.295 m

Mechanical Dimensions: 1.46 m x 1.36 m x 0.91 m

Maximum Coil Separation: 0.83 m

Usable Frequency Range: 0 – 5 kHz

Inductance (per Coil): 41.1 mH

Resistance (per Coil): 3.55 Ω

Resonant Frequency (Pair of Coils): > 13 kHz

Weight: 44.5 kg

 Datasheet
